122F7

12/2C 7XBC NS BC NS FPLR/CL3R 75C RED

SKU: 122F7

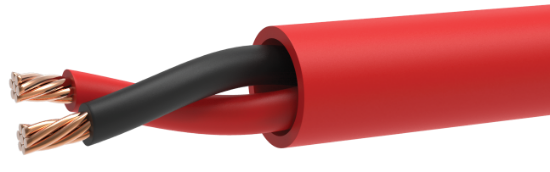

12 AWG 2C 7 STRAND BARE COPPER WIRE WITH .010" PVC INSULATION, NON-SHIELDED, OVERALL .015" RED PVC JACKET.

(UL) CL3R OR FPLR 75'C FT-4 "ROHS COMPLIANT" MADE IN USA

CC: BLACK & RED

RIPCORD: YES

FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Conductor
AWG Size & Stranding	12 Awg 7 Strand
Material	Bare Copper Wire
Conductor Count	2
Insulation
Material	Polyvinylchloride
Wall Thickness	.009"
Color Code	Black, Red
Assembly
Nominal Lay Length	3.50”
Shield	N/A
Drain Wire	N/A
Jacket
Material	Polyvinylchloride
Wall Thickness	.015"
Diameter	0.260”
Color	Red
Ripcord	Yes
Weight	53 lbs per mft
Nominal Diameter	0.244”
Markings
Type	Permanent Inkjet Surface Print
Legend	LAKE CABLE E171202 12AWG 2C 75C (UL) CL3R SUN RES OR FPLR FT4 “ROHS COMPLIANT” MADE IN USA
Footage Markers	Ascending/Descending
Standards
Maximum operating voltage	300V
Operating Temperature Range	-20C TO 75C

Copper Price 7/26/2024 4.1050
