142C

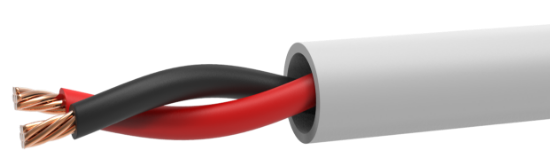

14 AWG 2 conductor 19 strand bare copper wire with PVC insulation, unshielded and overall PVC jacket for low-voltage electronic cable applications.
SKU: 142C


• Refer to NEC (NFPA 70) article 725 and article 800 for installation guidelines
• UL listed as type CL3R per UL standard 13 and as type FPLR 75°C per UL standard 1424
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding14 AWG 19 Strands Class C
MaterialAnnealed Bare Copper
Conductor Count2 Conductors
Standards
Recommended Operating Voltage300V
Jacket
MaterialPolyvinylchloride
Wall Thickness0.015”
Diameter0.224”
ColorGray
RipcordYes
Weight38 Lbs/Mft
Assembly
Nominal Lay Length2.75” LHL (4.36 Tw/Ft)
ShieldN/A
Drain WireN/A
Insulation
MaterialPolyvinylchloride
Wall Thickness0.009”
Color CodeBlack, Red
Markings
TypeCable permanently identified via surface inkjet print
LegendLAKE CABLE E171203 14AWG 2C (UL) FPLR OR (UL) CL3R 75’C SUN RES “ROHS” FT-4
Footage MarkersYes
