Picture of 142CSP
Picture of 142CSP
Picture of 142CSP

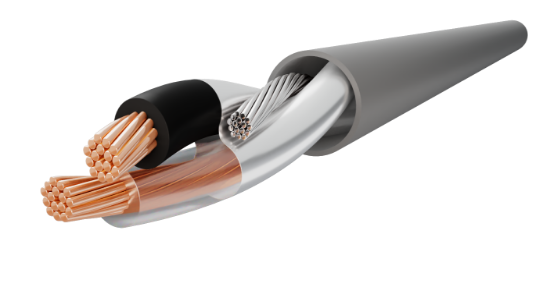

For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

142CSP

Not what you were looking for?
14AWG 2C 19STR TC OAS PE/PVC AWM 20253 80C GRAY
SKU: 142CSP


14 AWG 2C 19 STRAND TINNED COPPER WIRE WITH .032" POLYETHYLENE INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 16 AWG 19 STRAND TINNED COPPER WIRE, OVERALL .035" GRAY PVC JACKET.
(UL) AWM 20253 600V 80'C "ROHS COMPLIANT" MADE IN USA
CC: BLACK & CLEAR
NO RIPCORD
FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding
Material
Conductor Count
Insulation
Material
Wall Thickness
Color Code
Assembly
GroundN/A
FillersN/A
BinderN/A
ShieldAluminum/Mylar – 100% Coverage
Drain Wire16 AWG 19 Strand Tinned Copper
Nominal Lay Length
Jacket
MaterialPolyvinylchloride
Wall Thickness0.035”
Diameter0.344” ± 0.028”
ColorGray
RipcordNo
Cold Bend RatingN/A
Weight69 Lbs/Mft
Markings
TypeCable permanently identified via surface inkjet print
LegendLAKE CABLE E206787 14AWG 2C SHIELDED ЯU AWM 20253 600V 80C “ROHS COMPLIANT” MADE IN USA
Footage MarkersYes
Approvals
Approvals List

• UL recognized component as AWM 20253, 80°C, 600V per UL standard 758
• For internal wiring of electronic equipment
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (197) Updated January 15, 2019
• Operating Voltage: 600V RMS
• Made in the USA
