142F7

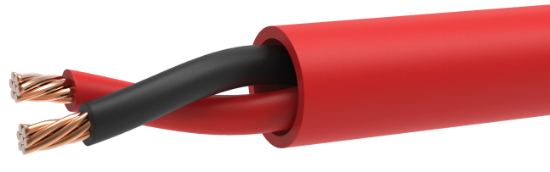

14AWG 2 conductor 7 strands bare copper wire with PVC insulation, unshielded and overall PVC jacket for low-voltage electronic cable applications

SKU: 142F7

• Cable suitable for installation under NEC (NFPA 70) article 725 and article 760 for guidelines
• UL listed as type CL3R per UL standard 13 and as type FPLR 75°C per UL standard 1424
• All materials used in the manufacture of this cable are RoHS II & REACH compliant
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Electricals
Impedance	51.8 Ω +/-10%
Capacitance	39.2 pF/ft. +/-10%
DC Resistance	2.1 Ω/Mft. @ 20°C
Conductor
AWG Size & Stranding	14 AWG 7 strands class B
Material	Annealed Bare Copper
Conductor Count	2 Conductors
Insulation
Material	Polyvinylchloride
Wall Thickness	0.009”
Color Code	Black & Red
Assembly
Nominal Lay Length	4.00” LHL (3.00 Tw/Ft)
Shield	N/A
Drain Wire	N/A
Jacket
Material	Polyvinylchloride
Wall Thickness	0.015”
Diameter	0.212”
Color	Red
Ripcord	Yes
Weight	39 Lbs/Mft
Markings
Type	Cable permanently identified via surface inkjet print
Legend	LAKE CABLE E171202 14AWG 2C (UL) FPLR OR (UL) CL3R 75’C SUN RES FT-4 “ROHS II” REACH MADE IN USA
Footage Markers	Yes
Standards
Maximum operating voltage	300V
