142FS7

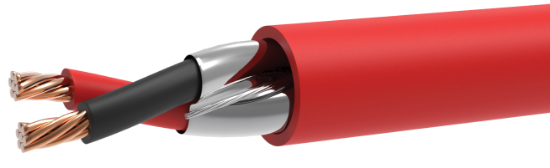

14 AWG 2 conductor 7 strand bare copper wire with PVC insulation, shielded and overall PVC jacket for low-voltage electronic cable applications
SKU: 142FS7


• Cable suitable for installation under NEC (NFPA 70) article 725 and article 760 for guidelines
• UL listed as type CL3R per UL standard 13 and as type FPLR 75°C per UL standard 1424
• All materials used in the manufacture of this cable are RoHS II & REACH compliant
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding14 AWG 7 Strand – Class B
MaterialAnnealed Bare Copper
Conductor Count2 Conductors
Standards
Maximum operating voltage300V
Jacket
MaterialPolyvinylchloride
Wall Thickness0.015”
Diameter0.214”
ColorRed
RipcordYes
Weight40 Lbs/Mft
Assembly
Nominal Lay Length4.00” LHL (3.00 Tw/Ft)
ShieldAluminum Mylar – 100% Coverage
Drain Wire24 AWG 7 Strand Tinned Copper
Insulation
MaterialPolyvinylchloride
Wall Thickness0.009”
Color CodeBlack, Red
Electricals
Impedance49 Ω +/-10%
Capacitance41 pF/ft. +/-10%
DC Resistance2.7 Ω/Mft. @ 20°C
Markings
TypeCable permanently identified via surface inkjet print
LegendLAKE CABLE E171203 14AWG 2C (UL) FPLR OR (UL) CL3R 75’C SUN RES FT-4 “ROHS II” REACH MADE IN USA
Footage MarkersYes

Remember, all of our wire can feature:

  • Short minumum runs
  • Special jacket colors including stripes
  • Custom print legends
  • Custom cable constructions
  • Custom packaging - boxes or reels
  • Custom lengths
  • Your name on package labels
