Picture of 162CSTP19
Picture of 162CSTP19
Picture of 162CSTP19

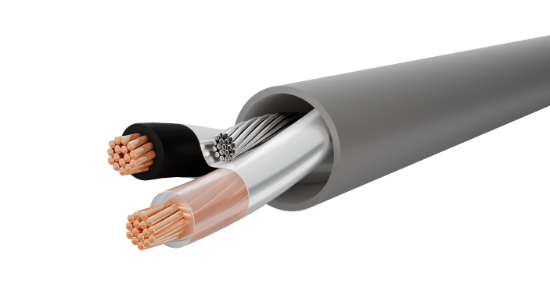

For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

162CSTP19

Not what you were looking for?
16/2C 19STR TC OAS PE/PVC (UL) CM/CL2/AWM 20253 600V CHROME
SKU: 162CSTP19


16 AWG 2C 19 STRAND TINNED COPPER WIRE WITH .024" PE INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH AN 18 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL .032" CHROME GRAY PVC JACKET.
75'C (UL) CL2 SUN RES OR C(UL)US CM OR AWM 20253 80'C 600V "ROHS COMPLIANT" MADE IN USA
CC: BLACK & CLEAR
RIPCORD: YES
FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding16 AWG 19 Strands
MaterialAnnealed Tinned Copper
Conductor Count2 conductors
Insulation
MaterialSemi-Rigid Polyvinylchloride
Wall Thickness0.023”
Color CodeBlack, White
Assembly
GroundN/A
FillersN/A
BinderN/A
ShieldAluminum/Mylar Tape – 100% Coverage
Drain Wire18 AWG 7 Strands Tinned Copper
Nominal Lay Length
Jacket
MaterialPolyvinylchloride
Wall Thickness0.032”
Diameter0.274” ± 0.022”
ColorChrome
RipcordYes
Cold Bend RatingN/A
Weight44 Lbs/Mft
Markings
TypeCable permanently identified via surface inkjet print
LegendE171202 16AWG 2C 75C (UL) CL2 SUN RES OR C(UL)US CM OR AWM 20253 80C 600V "ROHS COMPLIANT" MADE IN USA
Footage MarkersYes
Approvals
Approvals List

• Cable suitable for installation under NEC (NFPA 70) articles 800 and 725 guidelines
• UL listed as type CM per UL standard 444 and as type CL2 per UL standard 13
• UL recognized component as AWM style 20253 per UL standard 758
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (224) Updated June 10, 2022
• Made in the USA

Remember, all of our wire can feature:

  • Short minumum runs
  • Special jacket colors including stripes
  • Custom print legends
  • Custom cable constructions
  • Custom packaging - boxes or reels
  • Custom lengths
  • Your name on package labels
