162F

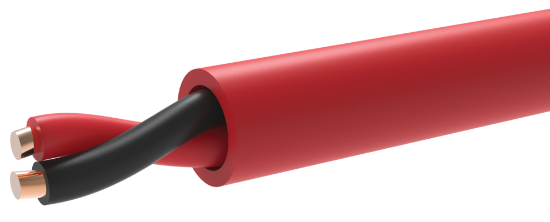

16 AWG 2 conductor solid bare copper wire with PVC insulation, unshielded and overall PVC jacket for low-voltage electronic cable applications. +75’c to -20’c
SKU: 162F


• Cable suitable for installation under NEC (NFPA 70) article 760 and article 800 for guidelines
• Suitable for NFPA 72 installations
• UL listed as type CMR per UL standard 444 and as type FPLR 75°C per UL standard 1424
• All materials used in the manufacture of this cable are RoHS II & REACH compliant
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Electricals
Impedance57.8 Ω +/-10%
Capacitance30.9 PF/ft. +/-10%
DC Resistance4.16 Ω/Mft. @ 20°C
Conductor
AWG Size & Stranding16 AWG Solid
MaterialAnnealed Bare Copper
Conductor Count2 Conductors
Insulation
MaterialPolyvinylchloride
Wall Thickness0.008”
Color CodeBlack, Red
Assembly
Nominal Lay Length3.50” LHL (3.42 Tw/Ft)
ShieldN/A
Drain WireN/A
Jacket
MaterialPolyvinylchloride
Wall Thickness0.015”
Diameter0.165”
ColorRed
RipcordYes
Weight24 Lbs/Mft
Markings
TypeCable permanently identified via surface inkjet print
LegendLAKE CABLE E171202 16AWG 2C (UL) FPLR OR (UL) CMR C(UL)US 75’C SUN RES FT-4 “ROHS II” REACH MADE IN USA
Footage MarkersYes
Standards
Maximum operating voltage300V
