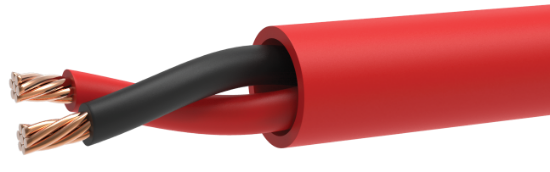

Picture of 162F7
Picture of 162F7
Picture of 162F7
For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

162F7

Not what you were looking for?
16AWG 2C 7STR BC NS PVC/PVC (UL) CMR/CL3R/FPLR 75C RED
SKU: 162F7


16 AWG 2C 7 STRAND BARE COPPER WIRE WITH .007" PVC INSULATION, NON-SHIELDED, OVERALL .015" RED PVC JACKET.

(UL) FPLR OR CMR C(UL)US 75'C FT-4 SUN RES "ROHS COMPLIANT" MADE IN USA

CC: BLACK & RED

RIPCORD: YES

FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding16 Awg 7 Strand
MaterialBare Copper Wire
Conductor Count2
Insulation
MaterialPolyvinylchloride
Wall Thickness.009"
Color CodeBlack, Red
Assembly
Nominal Lay Length3.00”
ShieldN/A
Drain WireN/A
Jacket
MaterialPolyvinylchloride
Wall Thickness.015"
Diameter0.170”
ColorRed
RipcordYes
Weight23 lbs per mft
Nominal Diameter0.170”
Markings
TypePermanent Inkjet Surface Print
LegendLAKE CABLE E171202 16AWG 2C 75C (UL) CL3R SUN RES OR FPLR OR C(UL)US CMR FT4 “ROHS COMPLIANT” MADE IN USA
Footage MarkersAscending/Descending
Standards
Maximum operating voltage300V
Operating Temperature Range-20C TO 75C
Approvals
Approvals List

• Cable suitable for installation under NEC (NFPA 70) articles 800, 725 and 760 guidelines 7
• Cable suitable for installation in Canada under Section 60 of CEC, Part I
• C(UL)US listed as CMR per UL standard 444 and per CSA C22.2 No. 214-17
• UL listed as CL3R per UL standard 13 or FPLR per UL standard 1424
• Cable meets (UL) 1666 vertical shaft flame test
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (224) Updated June 10, 2022
• Cable is Silicone Free
• Operating Voltage: 300V RMS
• Made in the USA
• WARNING: This product may contain chemicals, such as Vinyl Chloride, known to the state of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Wash hands after handling.
