162FS

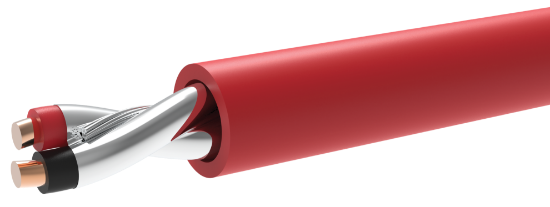

16 AWG 2 conductor solid bare copper wire with PVC insulation, shielded and overall PVC jacket for low-voltage electronic cable applications
SKU: 162FS


• Cable suitable for installation under NEC (NFPA 70) article 760 and article 800 for guidelines
• UL listed as type CMR per UL standard 444 and as type FPLR 75°C per UL standard 1424
• All materials used in the manufacture of this cable are RoHS II & REACH compliant
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Nominal Electrical Characteristics
Impedance27.3 Ω/Mft +/-10%
Capacitance74.4 pF/ft +/-10%
DC Resistance4.16 Ω/Mft @ 20°C
Conductor
AWG Size & Stranding16 AWG Solid
MaterialAnnealed Bare Copper
Conductor Count2 Conductors
Insulation
MaterialPolyvinylchloride
Wall Thickness0.008”
Color CodeBlack, Red
Assembly
Nominal Lay Length3.50” LHL (3.42 Tw/Ft)
ShieldAluminum Mylar – 100% Coverage
Drain Wire24 AWG 7 Strand Tinned Copper
Jacket
MaterialPolyvinylchloride
Wall Thickness0.015”
Diameter0.167”
ColorRed
RipcordYes
Weight27 Lbs/Mft
Markings
TypeCable permanently identified via surface inkjet print
LegendLAKE CABLE E171202 16AWG 2C (UL) FPLR OR (UL) CMR C(UL)US 75’C SUN RES FT-4 “ROHS II” REACH MADE IN USA
Footage MarkersYes
Standards
Maximum operating voltage300V

Remember, all of our wire can feature:

  • Short minumum runs
  • Special jacket colors including stripes
  • Custom print legends
  • Custom cable constructions
  • Custom packaging - boxes or reels
  • Custom lengths
  • Your name on package labels
