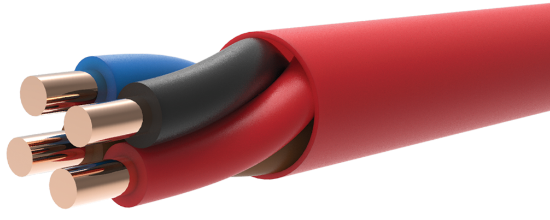

Picture of 164F
For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

164F

Not what you were looking for?
16AWG 4C SOLID BC UNS PVC/PVC (UL)CMR/CL3R/FPLR 75C RED
SKU: 164F


16 AWG 4C SOLID BARE COPPER WIRE WITH .008" PVC INSULATION, NON-SHIELDED, OVERALL .015" RED PVC JACKET.

(UL) CL3R SUN RES OR FPLR OR C(UL)US CMR FT-4 "ROHS COMPLIANT" MADE IN USA

CC: BLACK, RED, BROWN, BLUE

RIPCORD: YES

FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding16 Awg Solid
MaterialBare Copper Wire
Conductor Count4
Insulation
MaterialPolyvinylchloride
Wall Thickness.009"
Color CodeBlack, Red, Brown, Blue
Assembly
Nominal Lay Length2.50”
ShieldN/A
Drain WireN/A
Jacket
MaterialPolyvinylchloride
Wall Thickness.015"
Diameter0.192”
ColorRed
RipcordYes
Weight43 lbs per mft
Nominal Diameter0.191”
Markings
TypePermanent Inkjet Surface Print
LegendLAKE CABLE E171202 16AWG 4C 75°C (UL) CL3R SUN RES OR FPLR OR C(UL)US CMR FT-4 "ROHS II" MADE IN USA
Footage MarkersAscending/Descending
Standards
Maximum operating voltage300V
Operating Temperature Range-20C TO 75C
Approvals
Approvals List

Cable suitable for installation under NEC (NFPA 70) articles 800, 725 and 760 guidelines
Cable suitable for installation in Canada under Section 60 of CEC, Part I
C(UL)US listed as CMR per UL standard 444 and per CSA C22.2 No. 214-17
UL listed as CL3R per UL standard 13 or FPLR per UL standard 1424
Cable meets (UL) 1666 vertical shaft flame test
Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
Cable is REACH compliant per Regulation (EC) No 1907/2006 (224) Updated June 10, 2022
Operating Voltage: 300V RMS
Made in the USA
WARNING: This product may contain chemicals, such as Vinyl Chloride, known to the state of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Wash hands after handling.
