164FS

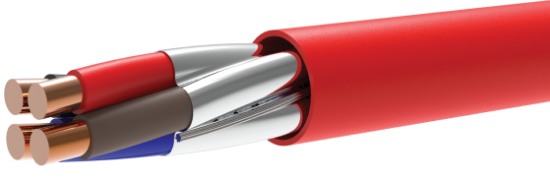

16 AWG 4 conductor solid bare copper wire with PVC insulation, shielded and overall PVC jacket for low-voltage electronic cable applications
SKU: 164FS


• UL listed as type CMR per UL standard 444 and as type FPLR 75°C per UL standard 1424
• All materials used in the manufacture of this cable are RoHS II & REACH compliant
• Cable suitable for installation under NEC (NFPA 70) article 760 and article 800 for guidelines
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding16 AWG Solid
MaterialAnnealed Bare Copper
Conductor Count4 Conductors
Insulation
MaterialPolyvinylchloride
Wall Thickness0.008”
Color CodeBlack, Red, Brown, Blue
Assembly
Nominal Lay Length3.50” LHL (3.42 Tw/Ft)
ShieldAluminum Mylar – 100% Coverage
Drain Wire24 AWG 7 Strand Tinned Copper
Jacket
MaterialPolyvinylchloride
Wall Thickness0.015”
Diameter0.194”
ColorRed
RipcordYes
Weight46 Lbs/Mft
Markings
TypeCable permanently identified via surface inkjet print
LegendLAKE CABLE E171202 16AWG 4C (UL) FPLR OR (UL) CMR C(UL)US 75’C SUN RES FT-4 “ROHS II” REACH MADE IN USA
Footage MarkersYes
Standards
Maximum operating voltage300V
