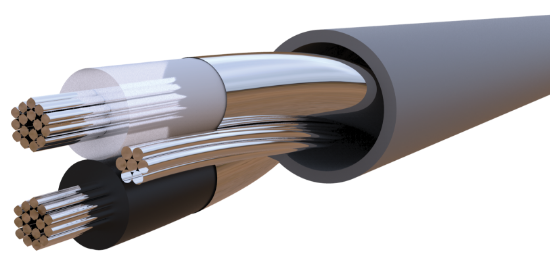

182CSTP-BLD

Conductor

AWG Size & Stranding:

18 AWG 16 Strands

Material:

Annealed Tinned Copper

Conductor Count:

2 Conductor

Insulation

Material:

Polyethylene

Wall Thickness:

0.028"

Color Code:

Black, Clear

Assembly

Ground:

20 AWG 7 Strand Tinned Copper

Fillers:

N/A

Binder:

N/A

Shield:

Aluminum/Mylar Tape- 100% coverage

Drain Wire:

20 AWG 7 Strands Tinned Copper

Nominal Lay Length:

2.50"

Jacket

Material:

Polyvinylchloride

Wall Thickness:

0.028”

Diameter:

0.226” ± 0.020”

Color:

Chrome Gray

Ripcord:

No

Cold Bend Rating:

N/A

Weight:

29 Lbs/Mft

Markings

Type:

Cable shall be permanently identified via surface inkjet print

Legend:

E171197 18AWG 2C SHIELDED 75C C(UL)US CM OR AWM 2092 300V 60C "ROHS COMPLIANT" MADE IN USA

Footage Markers:

Yes

Approvals

Approvals List:

• Cable suitable for installation under NEC (NFPA 70) article 800 guidelines
• Cable suitable for installation in Canada under Section 60 of CEC, Part I
• C(UL)US listed as CM per UL standard 444 and per CSA C22.2 No. 214-17
• UL recognized component as AWM 2092, 60°C, 30V per UL standard 758
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (211) Updated January 15, 2021
• Made in the USA
