182F

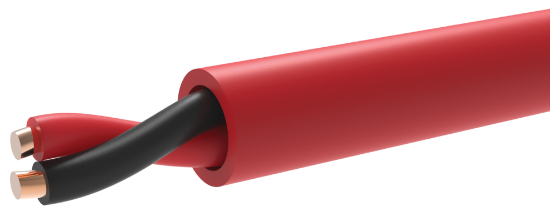

18 AWG 2 conductor solid bare copper wire with PVC insulation, unshielded and overall PVC jacket for low-voltage electronic cable applications
SKU: 182F


• UL listed as type CL3R per UL standard 13 and as type FPLR 75°C per UL standard 1424
• All materials used in the manufacture of this cable are RoHS II & REACH compliant
• Made in the USA
• Cable suitable for installation under NEC (NFPA 70) article 760 and article 800 for guidelines
• Suitable for NFPA 72 installations

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding18 AWG Solid
MaterialAnnealed Bare Copper
Conductor Count2 Conductors
Standards
Maximum operating voltage300V
Jacket
MaterialPolyvinylchloride
Wall Thickness0.015”
Diameter0.140”
ColorRed
RipcordYes
Weight17 Lbs/Mft
Assembly
Nominal Lay Length3.00” LHL (4.0 Tw/Ft)
ShieldN/A
Drain WireN/A
Insulation
MaterialPolyvinylchloride
Wall Thickness0.007”
Color CodeBlack, Red
Markings
TypeCable permanently identified via surface inkjet print
LegendLAKE CABLE E171203 18AWG 2C (UL) FPLR OR (UL) CMR C(UL)US 75’C SUN RES FT-4 “ROHS II” REACH MADE IN USA
Footage MarkersYes

Remember, all of our wire can feature:

  • Short minumum runs
  • Special jacket colors including stripes
  • Custom print legends
  • Custom cable constructions
  • Custom packaging - boxes or reels
  • Custom lengths
  • Your name on package labels
