182FS7

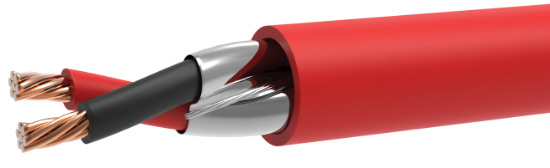

18 AWG 2 conductor stranded bare copper wire with PVC insulation, shielded and overall PVC jacket for low-voltage electronic cable applications
SKU: 182FS7


• Cable suitable for installation under NEC (NFPA 70) article 760 and article 800 guidelines
• UL listed as type CMR per UL standard 444 and as type FPLR 75°C per UL standard 1424
• All materials used in the manufacture of this cable are RoHS II & REACH compliant
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding18 AWG 7 Strands
MaterialAnnealed Bare Copper
Conductor Count2 Conductors
Standards
Maximum operating voltage300V
Jacket
MaterialPolyvinylchloride
Wall Thickness0.015”
Diameter0.150”
ColorRed
RipcordYes
Weight19 Lbs/Mft
Assembly
Nominal Lay Length3.00” LHL (4.00 Tw/Ft)
ShieldAluminum Mylar – 100% Coverage
Drain Wire24 AWG 7 Strand Tinned Copper
Insulation
MaterialPolyvinylchloride
Wall Thickness0.007”
Color CodeBlack, Red
Markings
TypeCable permanently identified via surface inkjet print
LegendLAKE CABLE E171203 18AWG 2C (UL) FPLR OR (UL) CMR C(UL)US 75’C SUN RES FT-4 “ROHS II” REACH MADE IN USA
Footage MarkersYes

Remember, all of our wire can feature:

  • Short minumum runs
  • Special jacket colors including stripes
  • Custom print legends
  • Custom cable constructions
  • Custom packaging - boxes or reels
  • Custom lengths
  • Your name on package labels
