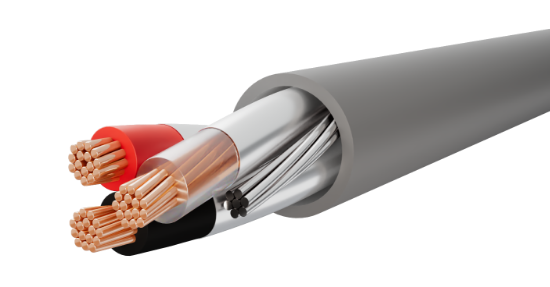

18 AWG 3C SHIELDED TC LLDPE/PVC CHROME JKT
SKU: 183CSP


18 AWG 3C 16 STRAND TINNED COPPER WIRE WITH .018" PE INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 20 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL .033" CHROME GRAY PVC JACKET.
(UL) CMR C(UL)US 75'C SUN RES OR AWM 2093 300V 60'C "ROHS COMPLIANT" MADE IN USA
CC: BLACK, CLEAR, RED
FOOTAGE MARKERS: YES
RIPCORD: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding18 AWG 16 Strands
MaterialAnnealed Tinned Copper
Conductor Count3 Conductors
Insulation
MaterialPolyethylene
Wall Thickness0.033"
Color CodeBlack, Red, Clear
Assembly
GroundN/A
FillersN/A
BinderN/A
ShieldAluminum/Mylar Tape- 100% coverage
Drain Wire20 AWG 7 Strands Tinned Copper
Nominal Lay Length
Jacket
MaterialPolyvinylchloride
Wall Thickness0.033”
Diameter0.244” ± 0.020”
ColorChrome Gray
RipcordYes
Cold Bend RatingN/A
Weight39 Lbs/Mft
Markings
TypeCable shall be permanently identified via surface inkjet print
LegendLAKE CABLE E171197 18AWG 3C SHIELDED 75C C(UL)US CMR SUN RES FT4 OR AWM 2093 300V 60C "ROHS COMPLIANT" MADE IN USA
Footage MarkersYes
Approvals
Approvals List

• Cable suitable for installation under NEC (NFPA 70) article 800 guidelines
• Cable suitable for installation in Canada under Section 60 of CEC, Part I
• C(UL)US listed as CMR per UL standard 444 and per CSA C22.2 No. 214-17
• UL recognized component as AWM 2093, 60°C, 300V per UL standard 758
• Cable meets (UL) 1685 FT4 flame test
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (224) Updated June 10, 2022
• Made in the USA
