184F

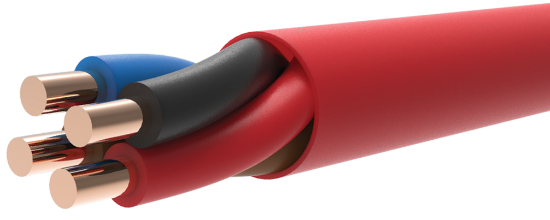

18 AWG 4 conductor solid bare copper wire with PVC insulation, unshielded and overall PVC jacket for low-voltage electronic cable applications
SKU: 184F


• UL listed as type CMR per UL standard 444 and as type FPLR 75°C per UL standard 1424
• Cable suitable for installation under NEC (NFPA 70) article 760 and article 800 for guidelines
• All materials used in the manufacture of this cable are RoHS II & REACH compliant
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding18 AWG Solid
MaterialAnnealed Bare Copper
Conductor Count4 Conductors
Standards
Maximum operating voltage300V
Jacket
MaterialPolyvinylchloride
Wall Thickness0.015”
Diameter0.162”
ColorRed
RipcordYes
Weight31 Lbs/Mft
Assembly
Nominal Lay Length3.00” LHL (4.0 Tw/Ft)
ShieldN/A
Drain WireN/A
Capacitance30 pf/ft
Insulation
MaterialPolyvinylchloride
Wall Thickness0.007”
Color CodeBlack, Red, Brown, Blue
Markings
TypeCable permanently identified via surface inkjet print in black ink
LegendLAKE CABLE E171203 18AWG 4C (UL) FPLR OR (UL) CMR C(UL)US 75’C SUN RES FT-4 “ROHS II” REACH MADE IN USA
Footage MarkersYes

Remember, all of our wire can feature:

  • Short minumum runs
  • Special jacket colors including stripes
  • Custom print legends
  • Custom cable constructions
  • Custom packaging - boxes or reels
  • Custom lengths
  • Your name on package labels
