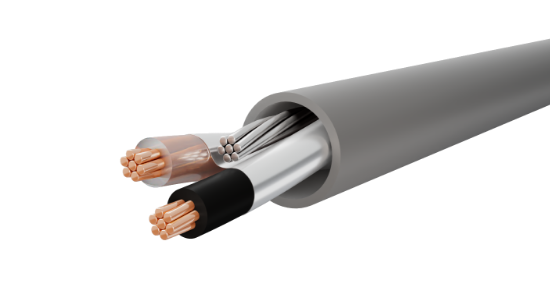

For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

202CSP

Not what you were looking for?
20AWG 2C 7STR TC OAS PVC CHROME GRAY
SKU: 202CSP


20 AWG 2C 7 STRAND TINNED COPPER WIRE WITH .017" POLYETHYLENE INSULATION,
OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 20 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL .028" CHROME GRAY PVC JACKET.
(UL) CM C(UL)US 75'C SUN RES OR AWM 2092 60'C 300V "ROHS COMPLIANT" MADE IN USA
CC: BLACK & CLEAR
RIPCORD: YES
FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding20 AWG 7 Strands
MaterialAnnealed Tinned Copper
Conductor Count2 Conductors
Insulation
MaterialPolyethylene
Wall Thickness0.017"
Color CodeBlack, Clear
Assembly
Ground20 AWG 7 Strand Tinned Copper
FillersN/A
BinderN/A
ShieldAluminum/Mylar Tape- 100% coverage
Drain Wire20 AWG 7 Strands Tinned Copper
Nominal Lay Length
Jacket
MaterialPolyvinylchloride
Wall Thickness0.028”
Diameter0.196” ± 0.010”
ColorChrome Gray
RipcordYes
Cold Bend RatingN/A
Weight23 Lbs/Mft
Markings
TypeCable shall be permanently identified via surface inkjet print
LegendLAKE CABLE E171197 20AWG 2C SHIELDED 75C C(UL)US CM OR AWM 2092 60C 300V "ROHS COMPLIANT" MADE IN USA
Footage MarkersYes
Approvals
Approvals List

• Cable suitable for installation under NEC (NFPA 70) article 800 guidelines
• Cable suitable for installation in Canada under Section 60 of CEC, Part I
• C(UL)US listed as CM per UL standard 444 and per CSA C22.2 No. 214-17
• UL recognized component as AWM 2092, 60°C, 300V per UL standard 758
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (211) Updated January 19, 2021
• Made in the USA
