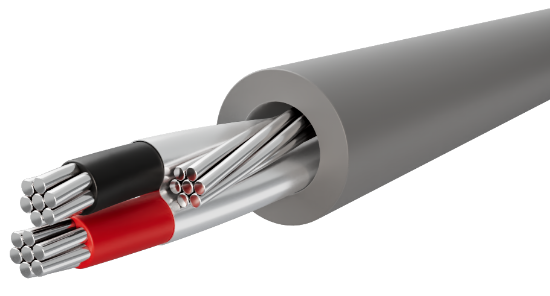

Picture of 222CSTPP
For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

222CSTPP

Not what you were looking for?
22AWG 2C 7STR TC OAS CMR/CL3R/FPLR 75C GRAY
SKU: 222CSTPP


22 AWG 2C 7 STRAND TINNED COPPER WIRE WITH .008" POLYPROPYLENE INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 22 AWG 7 STRAND TINNED COPPER DRAIN WIRE (OUT), OVERALL .020" GRAY PVC JACKET.
75C (UL) CL3R SUN RES OR FPLR OR C(UL)US CMR "ROHS COMPLIANT" MADE IN USA
CC: BLACK & RED
RIPCORD: YES
FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding22 AWG 7 Strands
MaterialAnnealed Tinned Copper
Conductor Count2 Conductors
Insulation
MaterialPolypropylene
Wall Thickness0.020"
Color CodeBlack, Red
Assembly
GroundN/A
FillersN/A
BinderN/A
ShieldAluminum/Mylar Tape – 100% Coverage
Drain Wire22 AWG 7 Strands Tinned Copper
Nominal Lay Length
Jacket
MaterialPolyvinylchloride
Wall Thickness0.020”
Diameter0.130” ± 0.010”
ColorGray
RipcordYes
Cold Bend RatingN/A
Weight12 Lbs/Mft
Markings
TypeCable permanently identified via surface inkjet print
LegendE171202 22AWG 2C 75C (UL) CL3R SUN RES OR FPLR OR C(UL)US CMR FT4 “ROHS COMPLIANT” MADE IN USA
Footage MarkersYes
Approvals
Approvals List

• Cable suitable for installation under NEC (NFPA 70) articles 800, 725 and 760 guidelines
• Cable suitable for installation in Canada under Section 60 of CEC, Part I
• C(UL)US listed as CMR per UL standard 444 and per CSA C22.2 No. 214-17
• UL listed as CL3R per UL standard 13 or FPLR per UL standard 1424
• Cable meets (UL) 1666 vertical shaft flame test
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (224) Updated June 10, 2022
• Made in the USA
