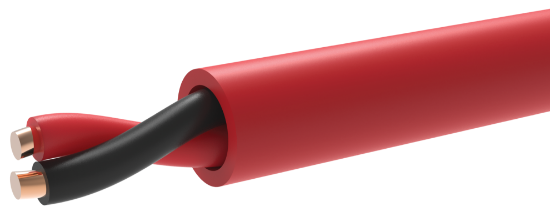

22AWG 2C SOLID BC NS FPLR/CMR/CL3R 75C RED
SKU: 222F


22 AWG 2C SOLID BARE COPPER WIRE WITH .007" PVC INSULATION, NON-SHIELDED, OVERALL 015" RED PVC JACKET.
LEGEND: (UL) CL3R SUN RES OR FPLR OR C(UL)US CMR FT4 "ROHS COMPLIANT" MADE IN USA
CC: BLACK & RED
RIPCORD: YES
FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding22 AWG Solid
MaterialAnnealed Bare Copper
Conductor Count2 Conductors
Insulation
MaterialPolyvinylchloride
Wall Thickness0.007”
Color CodeBlack, Red
Assembly
Nominal Lay Length2.50” LHL (4.80 Tw/Ft)
ShieldN/A
Drain WireN/A
Jacket
MaterialPolyvinylchloride
Wall Thickness0.015”
Diameter0.109”
ColorRed
RipcordYes
Weight9 Lbs/Mft
Markings
TypeCable permanently identified via surface inkjet print
LegendLAKE CABLE E171202 22AWG 2C (UL) FPLR OR (UL) CMR C(UL)US 75’C SUN RES FT-4 “ROHS II” REACH MADE IN USA
Footage MarkersYes
Standards
Maximum operating voltage300V
Approvals
Approvals List

• Cable suitable for installation under NEC (NFPA 70) article 760 and article 800 guidelines
• UL listed as type CMR per UL standard 444 and as type FPLR 75°C per UL standard 1424
• All materials used in the manufacture of this cable are RoHS II & REACH compliant
• Made in the USA

• Cable suitable for installation under NEC (NFPA 70) articles 800, 725 and 760 guidelines
• Cable suitable for installation in Canada under Section 60 of CEC, Part I
• C(UL)US listed as CMR per UL standard 444 and per CSA C22.2 No. 214-17
• UL listed as CL3R per UL standard 13 or FPLR per UL standard 1424
• Cable meets (UL) 1666 vertical shaft flame test
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (235) Updated June 14, 2023
• Operating Voltage: 300V RMS
• Made in the USA
• WARNING: This product may contain chemicals, such as Vinyl Chloride, known to the state of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Wash hands after handling.

Remember, all of our wire can feature:

  • Short minumum runs
  • Special jacket colors including stripes
  • Custom print legends
  • Custom cable constructions
  • Custom packaging - boxes or reels
  • Custom lengths
  • Your name on package labels
