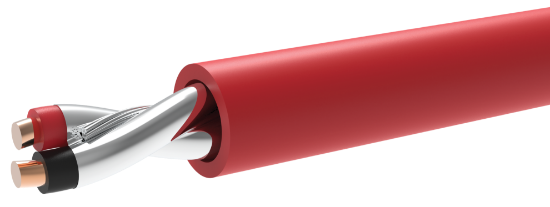

Picture of 222FS
Picture of 222FS
Picture of 222FS
For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

222FS

Not what you were looking for?
22AWG 2C SOLID BC OAS FPLR/CMR/CL3R 75C RED
SKU: 222FS


22 AWG 2C SOLID BARE COPPER WIRE WITH .008" PVC INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD, OVERALL .015" RED PVC JACKET.
(UL) CL3R SUN RES OR FPLR OR C(UL)US CMR FT4 "ROHS COMPLIANT" MADE IN USA
CC: BLACK & RED
RIPCORD: YES
FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding22 AWG Solid
MaterialAnnealed Bare Copper
Conductor Count2 Conductors
Insulation
MaterialPolyvinylchloride
Wall Thickness0.008”
Color CodeBlack, Red
Assembly
Nominal Lay Length3.00” LHL (4.00 Tw/Ft) Nominal
ShieldAluminum Mylar – 100% Coverage
Drain Wire24 AWG 7 Strand Tinned Copper
Jacket
MaterialPolyvinylchloride
Wall Thickness0.015”
Diameter0.115” +/- 0.010”
ColorRed
RipcordYes
Weight10 Lbs/Mft
Markings
TypeCable permanently identified via surface inkjet print
LegendLAKE CABLE E171202 22AWG 2C SHIELDED 75C (UL) CL3R SUN RES OR FPLR OR C(UL)US CMR FT4 “ROHS COMPLIANT” MADE IN USA
Footage MarkersYes
Standards
Maximum operating voltage300V
Approvals
Approvals List

• Cable suitable for installation under NEC (NFPA 70) articles 800, 725 and 760 guidelines
• Cable suitable for installation in Canada under Section 60 of CEC, Part I
• C(UL)US listed as CMR per UL standard 444 and per CSA C22.2 No. 214-17
• UL listed as CL3R per UL standard 13 or FPLR per UL standard 1424
• Cable meets (UL) 1666 vertical shaft flame test
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Operating Voltage: 300V RMS
• Made in the USA
• WARNING: This product may contain chemicals, such as Vinyl Chloride, known to the state of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Wash hands after handling.
