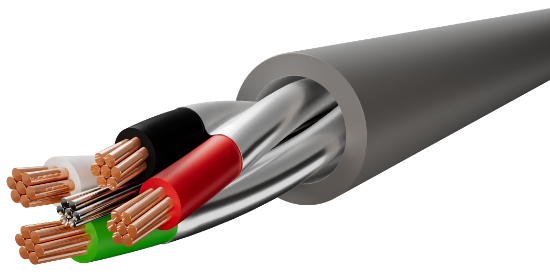

For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

222PRTPP

Not what you were looking for?
22/2PR 7XTC EPS PP/PVC CM GRAY
SKU: 222PRTPP


22 AWG 2 PAIR 7 STRAND TINNED COPPER WIRE WITH .009" POLYPROPYLENE INSULATION, EACH PAIR IS INDIVIDUALLY SHIELDED WITH ALUMINUM MYLAR TAPE SHIELD WITH A COMMON 24 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL .020" CHROME GRAY PVC JACKET.
75'C (UL) CL3 SUN RES OR FPL OR C(UL)US CM "ROHS COMPLIANT" MADE IN USA
CC: BLACK & RED, WHITE & GREEN
RIPCORD: YES
FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding22 AWG 7 Strand Class B
MaterialAnnealed Tinned Copper
Conductor Count2 Pair
Insulation
MaterialPolypropylene
Wall Thickness.009"
Color CodeRed & Black, White & Green
Assembly
GroundN/A
FillersN/A
BinderN/A
ShieldAluminum/Mylar – 100% Coverage (Foil Facing Out)
Drain Wire24 AWG 7 Strand Tinned Copper (Common)
Nominal Lay Length
Jacket
MaterialPolyvinylchloride
Wall Thickness0.020”
Diameter0.155” ± 0.010”
ColorChrome Gray
RipcordYes
Cold Bend Rating-20°C
Weight18 Lbs/Mft
Markings
TypeCable shall be permanently identified via surface inkjet print
LegendLAKE CABLE E171202 22AWG 2PR 75C (UL) CL3 SUN RES OR FPL OR C(UL)US CM “ROHS COMPLIANT” MADE IN USA
Footage MarkersYes
Approvals
Approvals List

• Refer to NEC (NFPA 70) article 725 and article 800 for installation guidelines
• UL listed as CM c(UL)US per UL standard 444, CL3 per UL standard 13 and FPL per UL standard 1424
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (224) Updated June 10, 2022
• Operating Voltage: 300V RMS
• Made in the USA
