223EPSTP

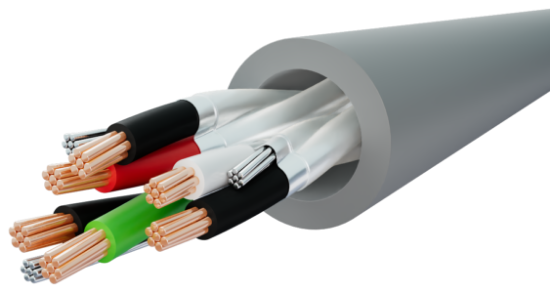

22 AWG 3 pair 7 strands tinned copper wire with PP insulation, individually shielded, with an overall PVC jacket.
SKU: 223EPSTP


• UL listed as type CMR c(UL)us per UL standard 444
• UL recognized component as type AWM 2919 per UL standard 758
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (211) Updated June 10, 2022
• Operating Voltage: 300V RMS
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding22 AWG 7 Strands Class B
MaterialAnnealed Tinned Copper
Conductor Count3 Pairs
Insulation
MaterialPolypropylene
Wall Thickness0.011”
Color CodeBlack x Red, Black x White, Black x Green
Assembly
GroundN/A
FillersN/A
BinderClear Mylar Tape – 100% Coverage
ShieldFFE Aluminum/Mylar – 100% Coverage
Drain Wire22 AWG 7 Strands Tinned Copper
Jacket
MaterialTube Extruded Polyvinylchloride
Wall Thickness0.034”
Diameter0.271” ± 0.015”
ColorChrome Gray
RipcordYes
Cold Bend RatingN/A
Weight41 Lbs/Mft
Markings
TypeCable permanently identified via surface inkjet print
LegendLAKE CABLE E171197 22AWG 3PR EPS 75C C(UL)US CMR SUN RES FT4 OR AWM 2919 80C 30V "ROHS COMPLIANT" MADE IN USA
Footage MarkersYes (Ascending)
