224FS

Not what you were looking for?

22AWG 4C SOL BC OAS PVC/PVC (UL) CMR/CL3R/FPLR 75C RED

SKU: 224FS

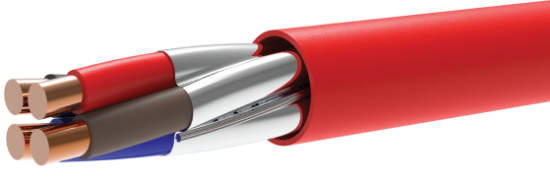

22 AWG 4C SOLID BARE COPPER WIRE

WITH .007" PVC INSULATION, OVERALL

ALUMINUM MYLAR TAPE SHIELD WITH A

24 AWG 7 STRAND TINNED COPPER DRAIN

WIRE, OVERALL .015" RED PVC JACKET.

(UL) FPLR OR (UL) CMR C(UL)US OR (UL) CL3R

75'C SUN RES FT4 "ROHS II" REACH MADE IN USA

CC: BLACK, RED, BROWN, BLUE

RIPCORD: YES

FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Conductor
AWG Size & Stranding	22 Awg Solid
Material	Bare Copper Wire
Conductor Count	4
Insulation
Material	Polyvinylchloride
Wall Thickness	.009"
Color Code	Black, Red, Brown, Blue
Assembly
Nominal Lay Length	2.50”
Shield	Aluminum Mylar Tape Shield - 100% Coverage
Drain Wire	24 Awg 7 Strand Tinned Copper Wire
Jacket
Material	Polyvinylchloride
Wall Thickness	.015"
Diameter	0.128”
Color	Red
Ripcord	Yes
Weight	15 lbs per mft
Nominal Diameter	0.127”
Markings
Type	Permanent Inkjet Surface Print
Legend	LAKE CABLE E171202 22AWG 4C SHIELDED 75C (UL) CL3R SUN RES OR FPLR OR C(UL)US CMR FT4 “ROHS COMPLIANT” MADE IN USA
Footage Markers	Ascending/Descending
Standards
Maximum operating voltage	300V
Operating Temperature Range	-20C TO 75C

Copper Price 9/6/2024 4.1090
