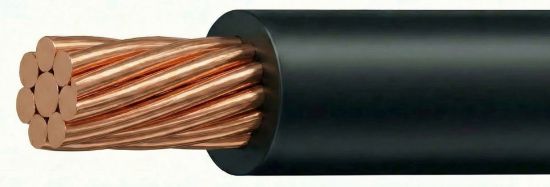

XHHW-2/41-09

Conductor

Conductor Count:

1

AWG Size:

4 AWG

Number of Strands:

7

Stranding Class:

Class B

Material:

Annealed Bare Copper

Insulation

Material:

Cross-linked Polyethylene

Wall Thickness:

0.045

Diameter:

0.322

Color Code:

White

Weight:

161

Markings

Footage Markers:

Yes

Type:

Cable shall be permanently identified via surface inkjet print

Legend:

LAKE CABLE E214472 4AWG (UL) XHHW-2/VW-1 1000V 90C DRY/WET PR II GR II “ROHS COMPLIANT” MADE IN USA

Approvals

Approvals List:

• UL listed as type XHHW-2 per UL Standard 44 for Thermoset-Insulated Wires

• UL approved for Oil and Gasoline resistance

• UL approved for CT use applications for 1/0 and larger

• Due to the frequent updates to regulations, EU REACH SVHCs and ROHS please contact Lake Cable for the most up to date compliance statement.

• WARNING: This product may contain chemicals that pose a risk of cancer from exposure to Vinyl Chloride and reproductive harm from exposure to Di-isodecyl Phthalate (DIDP). Visit: www.P65Warnings.ca.gov
