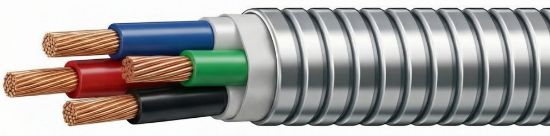

MCTHHNIG4/03

Conductor

AWG Size & Stranding:

4/0 AWG 19 Strand

Material:

Annealed Bare Copper

Conductor Count:

3 Conductors

Insulation

Material:

Polyvinylchloride & Nylon

Wall Thickness:

PVC 0.050"/Nylon 0.008"

Color Code:

Method 1, Table E-2 + (1) Green Insulated Ground

Assembly

Ground:

6 AWG 7 Strand (Insulated Green)

Fillers:

Non-Hygroscopic Polypropylene – as required for a circular cross-section

Binder:

Clear Mylar – As Required

Interlocked Armor

Material:

Interlocked Aluminum

Diameter:

1.655"

Weight:

2673 Lbs./Mft.

Markings

Type:

Cable shall be permanently identified via marker tape

Legend:

LAKE CABLE E318324 4/0AWG 3C (UL) MC 600V THWN-2/VW-1 INSULATED GROUND 90C DRY INTERLOCKED ALUMINUM ARMOR “ROHS COMPLIANT” MADE IN USA

Footage Markers:

Yes

Approvals

Approvals List:

• UL listed as Type MC per UL Standard 1569 for metal clad cables
• 10AWG and smaller meets ICEA S-73-532, where applicable
• 8AWG and larger meets ICEA S-95-658, where applicable
• Due to the frequent updates to regulations, EU REACH SVHCs and ROHS please contact Lake Cable for the most up to date compliance statement.
• WARNING: This product may contain chemicals that pose a risk of cancer from exposure to Vinyl Chloride and reproductive harm from exposure to Di-isodecyl Phthalate (DIDP). Visit: www.P65Warnings.ca.gov
