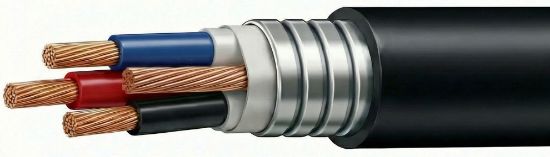

MCVGXX3/03

Conductor

AWG Size & Stranding:

3/0 AWG 19 Strand

Material:

Annealed Bare Copper

Conductor Count:

3 Conductors

Insulation

Material:

Cross-linked Polyethylene

Wall Thickness:

0.055"

Color Code:

Method I, Table E-2

Assembly

Ground:

Uninsulated 4 AWG 7 Strand

Fillers:

Non-Hygroscopic Polypropylene – as required for a circular cross-section

Binder:

Clear Mylar – As Required

Outer Jacket

Material:

Polyvinylchloride

Wall Thickness:

0.050"

Diameter:

1.581"

Color:

Black

Ripcord:

Yes

Cold Bend Rating:

-40°C

Weight:

2337 Lbs./Mft.

Interlocked Armor

Material:

Interlocked Aluminum

Markings

Type:

Cable shall be permanently identified via surface inkjet print

Legend:

LAKE CABLE E318324 3/0AWG 3C (UL) MC XHHW-2 600V 90C DRY/WET UNINSULATED GROUND INTERLOCKED ALUMINUM ARMOR PVC JACKET WET LOCATIONS CABLE SUNLIGHT RESISTANT, FOR CT USE DIR BUR IEEE 1202/FT4 “ROHS COMPLIANT” MADE IN USA

Footage Markers:

Yes

Approvals

Approvals List:

• UL listed as Type MC per UL Standard 1569 for metal clad cables
• Cable is suitable for use in Class I Division 2 hazardous locations
• UL approved for Direct Burial & Sunlight Resistant applications
• Cable meets UL 1581 & IEEE 1202 (FT-4) 70,000 BTU/HR & ICEA T-29-520 210,000 BTU/HR requirements
• 10AWG and smaller meets ICEA S-73-532, where applicable
• 8AWG and larger meets ICEA S-95-658, where applicable
• Due to the frequent updates to regulations, EU REACH SVHCs and ROHS please contact Lake Cable for the most up to date compliance statement.
• WARNING: This product may contain chemicals that pose a risk of cancer from exposure to Vinyl Chloride and reproductive harm from exposure to Di-isodecyl Phthalate (DIDP). Visit: www.P65Warnings.ca.gov
