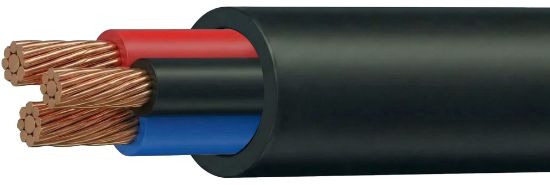

VXC143

Conductor

AWG Size & Stranding:

14 AWG 7 Strands Class B

Material:

Annealed Bare Copper

Conductor Count:

3 Conductors

Insulation

Material:

Cross-linked Polyethylene

Wall Thickness:

0.030”

Color Code:

Method 1, Table E-2

Assembly

Lay Length:

Per UL Standard 1277

Fillers:

Non-Hygroscopic Polypropylene - As required for a circular cross-section

Binder:

Clear Mylar – As required

Shield:

N/A

Drain Wire:

N/A

Jacket

Material:

Chlorinated Polyethylene

Wall Thickness:

0.045”

Diameter:

0.378”

Color:

Black

Ripcord:

Yes

Cold Bend Rating:

-25°C

Weight:

96 lbs./Mft.

Markings

Type:

Cable shall be permanently identified via surface inkjet print

Legend:

LAKE CABLE E208309 14AWG 3C (UL) TC-ER XHHW-2/VW-1 600V 90’C DRY/WET CPE JACKET SUN RES DIR BUR OIL RES I & II FT4 “ROHS”

Footage Markers:

Yes

Approvals

Approvals List:

• Refer to NEC (NFPA 70) article 336 for installation guidelines
• Cable is suitable for use in Class I Division 2 hazardous locations
• Individual conductors pass UL VW-1 flame test, rated XHHW-2/VW-1
• *UL listed as Type TC per UL Standard 1277 for tray cables with 2 conductors
• *UL listed as Type TC-ER per UL Standard 1277 for tray cables 3+ conductors
• UL approved for Direct Burial, Sunlight and Oil I & II Resistant applications
• Cable meets UL 1581 & IEEE 1202 (FT-4) 70,000 BTU/HR & ICEA T-29-520 210,000 BTU/HR Requirements
• 10 AWG and smaller meets ICEA S-73-532, where applicable
• 8 AWG and larger meets ICEA S-95-658, where applicable
• 1000V rating available upon request
• Due to the frequent updates to regulations, specifically California Proposition 65, EU REACH SVHCs and ROHS please contact Lake Cable for the most up to date compliance statement.
• Due to the frequent updates to regulations, EU REACH SVHCs and ROHS please contact Lake Cable for the most up to date compliance statement.
• WARNING: This product may contain chemicals that pose a risk of cancer from exposure to Vinyl Chloride and reproductive harm from exposure to Di-isodecyl Phthalate (DIDP). Visit: www.P65Warnings.ca.gov
• Made in the USA
