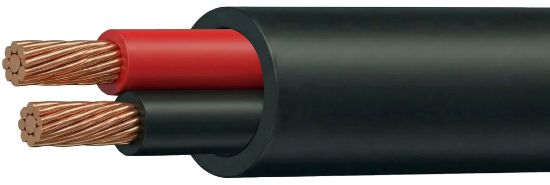

VXH142

Conductor

AWG Size & Stranding:

14 AWG 7 Strand Class B

Material:

Annealed Bare Copper

Conductor Count:

2 Conductors

Insulation

Material:

Cross-linked Polyethylene

Wall Thickness:

0.030"

Color Code:

Method 1, Table E-2

Assembly

Fillers:

Non-Hygroscopic Polypropylene - As required for a circular cross-section

Binder:

Clear Mylar – As required

Shield:

N/A

Drain Wire:

N/A

Jacket

Material:

Low Smoke FR Zero Halogen Polyolefin (LSFR-0HPO)

Wall Thickness:

0.045"

Diameter:

0.356"

Color:

Black

Ripcord:

Yes

Cold Bend Rating:

-25˚C

Weight:

69 Lbs./Mft.

Markings

Type:

Cable shall be permanently identified via surface inkjet print

Legend:

LAKE CABLE E208309 14AWG 2C (UL) TC-ST1-ER* XHHW-2 600V 90C DRY/WET LSZH JACKET SUN RES DIR BUR “ROHS COMPLIANT” IEEE 1202 FT4 MADE IN USA

Footage Markers:

Yes

Approvals

Approvals List:

• Refer to NEC (NFPA 70) article 336 for installation guidelines
• Cable is suitable for use in Class I Division 2 hazardous locations
• *UL listed as Type TC-ST1 per UL Standard 1277 for tray cables for 2 conductors
• *UL listed as Type TC-ST1-ER per UL Standard 1277 for tray cables for 3 or more conductors
• UL approved for Direct Burial, Sunlight Resistant & Low Smoke applications
• Cable meets IEEE 383 & UL 1581 70,000 BTU/HR flame test requirements
• Cable meets Limited Smoke test requirements (ST1) per UL 1685
• Cable meets -25C Cold Bend per UL 1277
• 8AWG and larger Meets ICEA S-95-658, where applicable
• 10AWG and smaller meets ICEA S-73-532, where applicable
• Due to the frequent updates to regulations, EU REACH SVHCs and ROHS please contact Lake Cable for the most up to date compliance statement.
• WARNING: This product may contain chemicals that pose a risk of cancer from exposure to Vinyl Chloride and reproductive harm from exposure to Di-isodecyl Phthalate (DIDP). Visit: www.P65Warnings.ca.gov
• Made in the USA
