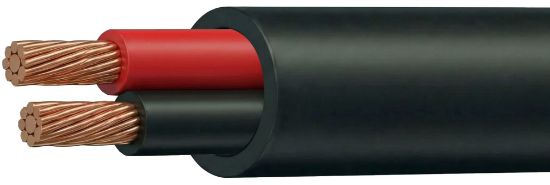

VX142

Conductor

AWG Size & Stranding:

14 AWG 7 Strands Class B

Material:

Annealed Bare Copper

Conductor Count:

2 Conductors

Insulation

Material:

Cross-linked Polyethylene

Wall Thickness:

0.030”

Color Code:

Method 1, Table E-2

Assembly

Lay Length:

Per UL Standard 1277

Fillers:

Non-Hygroscopic Polypropylene - As required for a circular cross-section

Binder:

Clear Mylar – As required

Shield:

N/A

Drain Wire:

N/A

Jacket

Material:

Polyvinylchloride

Wall Thickness:

0.045”

Diameter:

0.356”

Color:

Black

Ripcord:

Yes

Cold Bend Rating:

-40°C

Weight:

70 lbs./Mft.

Markings

Type:

Cable shall be permanently identified via surface inkjet print

Legend:

LAKE CABLE E208309 14AWG 2C (UL) TC XHHW-2/VW-1 600V 90’C DRY/WET PVC JACKET SUN RES DIR BUR FT4 “ROHS”

Footage Markers:

Yes
