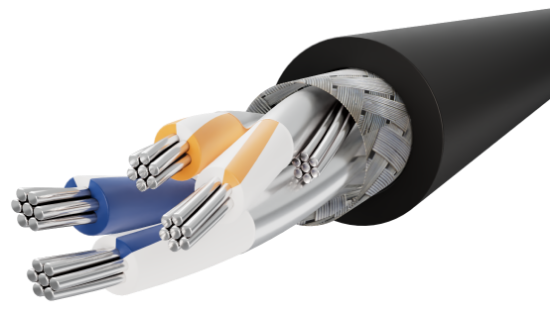

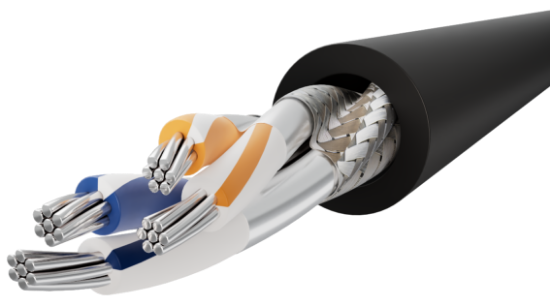

Picture of BT222PRSTFPBRD
For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

BT222PRSTFPBRD

Not what you were looking for?
22/2PR 7XTC OS/OB PE/PVC PLTC/CMG BLACK
SKU: BT222PRSTFPBRD


22 AWG 2 PAIR 7 STRAND TINNED COPPER WIRE WITH .018" FOAMED PE INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 22 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL 65% TINNED COPPER BRAID SHIELD, OVERALL .055" BLACK PVC JACKET.
(UL) PLTC SUN RES OR C(UL)US CM FT4 "ROHS COMPLIANT" MADE IN USA
CC: WHITE/BLUE & BLUE/WHITE, WHITE/ORANGE & ORANGE/WHITE
RIPCORD: YES
FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding22 AWG 7 Strands Class B
MaterialAnnealed Tinned Copper
Conductor Count2 Pairs
Insulation
MaterialFoamed Polyethylene
Wall Thickness0.018”
Color CodeWhite/Blue x Blue/White, White/Orange x Orange/White
Assembly
GroundN/A
FillersN/A
BinderN/A
ShieldAluminum/Mylar Tape – 100% Coverage (Foil Facing Out)
Drain Wire22 AWG 7 Strand Tinned Copper
Jacket
MaterialPolyvinylchloride
Wall Thickness0.055”
Diameter0.352” ± 0.015”
ColorBlack
RipcordYes
Cold Bend RatingN/A
Weight54 Lbs/Mft
Markings
TypeCable permanently identified via surface inkjet print
LegendLAKE CABLE E171202 22AWG 2PR SHIELDED 75C (UL) PLTC SUN RES OR C(UL)US CM FT4 “ROHS COMPLIANT” MADE IN USA
Footage MarkersYes
Approvals
Approvals List

• Cable suitable for installation under NEC (NFPA 70) articles 800 and 725 guidelines
• Cable suitable for installation in Canada under Section 60 of CEC, Part I
• C(UL)US listed as CM per UL standard 444 and per CSA C22.2 No. 214-17
• UL listed as PLTC per UL standard 13
• Cable is UL approved for Sunlight Resistant Applications.
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Meets EIA Standard RS485
• Made in the USA

Remember, all of our wire can feature:

  • Short minumum runs
  • Special jacket colors including stripes
  • Custom print legends
  • Custom cable constructions
  • Custom packaging - boxes or reels
  • Custom lengths
  • Your name on package labels
