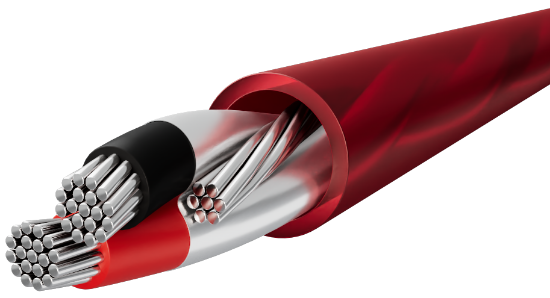

Picture of FF182CST(19)-02
For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

FF182CST(19)-02

Not what you were looking for?
18AWG 2C 19XTC FEP/FEP CL3P/CMP 150C RED
SKU: FF182CST(19)-02


18 AWG 2C 19 STRAND TINNED COPPER WIRE WITH .007" FEP INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 20 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL .014" TRANSLUCENT RED FEP JACKET.
150'C C(UL)US CMP FT-6 ---SUITABLE FOR OIL SUN RES GAS WET LOCATIONS GAS/VAPOR TIGHT FEP JACKET "ROHS COMPLIANT" MADE IN USA
CC: BLACK & RED
RIPCORD: NO
FOOTAGE MARKERS: NO
LEGEND PRINTED ON MARKER TAPE

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding18 AWG 19 Strand
MaterialAnnealed Tinned Copper
Conductor Count2 Conductors
Insulation
MaterialFluorinated Ethylene Propylene
Wall Thickness.007"
Color CodeBlack & Red
Assembly
GroundN/A
FillersN/A
BinderN/A
ShieldAluminum Mylar – 100% Coverage
Drain Wire20 AWG 7 Strands Tinned Copper
Nominal Lay Length
Jacket
MaterialFluorinated Ethylene Propylene
Wall Thickness0.014”
Diameter0.154” ± 0.015”
ColorTranslucent Red
RipcordN/A
Cold Bend RatingN/A
Weight25 Lbs/Mft
Markings
TypeCable permanently identified via marker tape under jacket
LegendE171197 18AWG 2C SHIELDED 150C CL3P OR FPLP OR C(UL)US CMP FT6 ---- SUITABLE FOR OIL SUN RES GAS WET LOCATIONS GAS/VAPOR-TIGHT FEP JACKET "ROHS COMPLIANT" MADE IN USA
Footage MarkersN/A
Approvals
Approvals List

• Cable suitable for installation under NEC (NFPA 70) articles 800, 725 & 760 guidelines
• Cable suitable for installation in Canada under Section 60 of CEC, Part I
• C(UL)US listed as CMP per UL standard 444 and per CSA C22.2 No. 214-17
• UL listed as CL3P per UL standard 13 and FPLP per UL standard 1424
• Cable meets NFPA 262 (Steiner tunnel) flame test
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (224) Updated June 10, 2022
• Made in the USA
