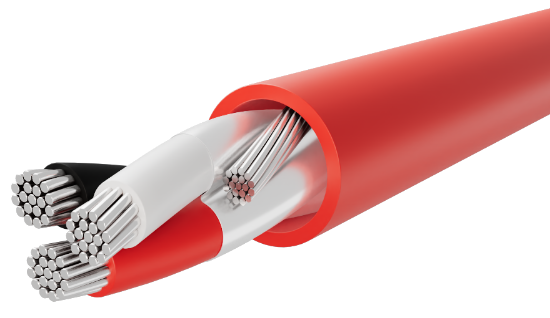

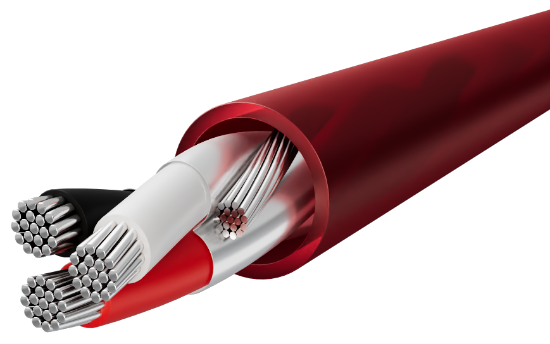

FF183CST(19)-02

Conductor

AWG Size & Stranding:

18 AWG 19 Strand

Material:

Annealed Tinned Copper

Conductor Count:

3 Conductors

Insulation

Material:

Fluorinated Ethylene Propylene

Wall Thickness:

0.007"

Color Code:

Black, White, Red

Assembly

Nominal Lay Length:

1.75"

Ground:

20 AWG 19 Strand Tinned Copper

Fillers:

N/A

Binder:

N/A

Shield:

Aluminum/Mylar – 100% Coverage (Foil Out)

Drain Wire:

20 AWG 19 Strands Tinned Copper

Jacket

Material:

Tube Extruded Fluorinated Ethylene

Wall Thickness:

0.014”

Diameter:

0.163” ± 0.015”

Color:

Translucent Red

Ripcord:

No

Cold Bend Rating:

N/A

Weight:

34 Lbs/Mft

Markings

Type:

Cable permanently identified via marker tape under jacket

Legend:

E171197 18AWG 3C SHIELDED 150C CL3P OR FPLP OR C(UL)US CMP FT6 ---- SUITABLE FOR OIL SUN RES GAS WET LOCATIONS GAS/VAPOR-TIGHT FEP JACKET "ROHS COMPLIANT" MADE IN USA

Footage Markers:

No

Approvals

Approvals List:

• Cable suitable for installation under NEC (NFPA 70) articles 800 guidelines
• Cable suitable for installation in Canada under Section 60 of CEC, Part I
• C(UL)US listed as CMP per UL standard 444 and per CSA C22.2 No. 214-17
• Operating Temperature: -70°C to 150°C
• Cable meets NFPA 262 (Steiner tunnel) flame test
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (223) Updated January 17, 2022
• Operating Voltage: 300V RMS
• Made in the USA
