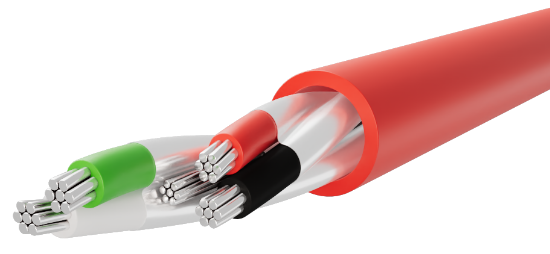

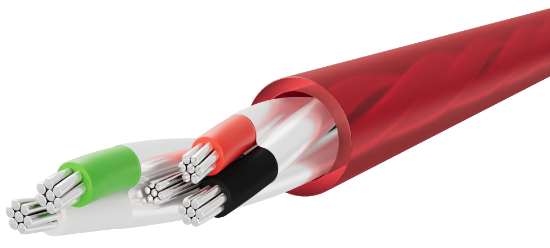

Picture of FF222PRT-02
For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

FF222PRT-02

Not what you were looking for?
22/2PR 7STR TC EPS/CD FEP/FEP CMP/CL3P/FPLP 150C RED
SKU: FF222PRT-02


22 AWG 2 PAIR 7 STRAND TINNED COPPER WIRE WITH .007" FEP INSULATION, EACH PAIR IS INDIVIDUALLY SHIELDED WITH ALUMINUM MYLAR TAPE SHIELDS WITH A COMMON 24 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL .014" RED FEP JACKET.
C(UL)US CMP FT-6 ---SUITABLE FOR OIL SUN RES GAS WET LOCATIONS GAS/VAPOR TIGHT FEP JACKET "ROHS COMPLIANT" MADE IN USA
CC: RED & BLACK, GREEN & WHITE
RIPCORD: NO
FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding22 AWG 7 Strands Class B
MaterialAnnealed Tinned Copper
Conductor Count2 Pairs
Insulation
MaterialFluorinated Ethylene Propylene
Wall Thickness0.007”
Color CodeRed x Black, Green x White
Assembly
GroundN/A
FillersN/A
BinderN/A
ShieldAluminum/Mylar Tape – 100% Coverage
Drain Wire24 AWG 7 Strand Tinned Copper
Jacket
MaterialFluorinated Ethylene Propylene
Wall Thickness0.014”
Diameter0.134” ± 0.015"
ColorRed
RipcordNo
Cold Bend RatingN/A
Weight19 Lbs/Mft
Markings
TypeCable permanently identified via marker tape under jacket
LegendE171202 22AWG 2PR 150C (UL) CL3P OR FPLP OR C(UL)US CMP FT6 ---- SUITABLE FOR OIL SUN RES GAS WET LOCATIONSGAS/VAPOR TIGHT FEP
Footage MarkersYes
Approvals
Approvals List

• Cable suitable for installation under NEC (NFPA 70) articles 800, 725 and 760 guidelines
• Cable suitable for installation in Canada under Section 60 of CEC, Part I
• C(UL)US listed as CMP per UL standard 444 and per CSA C22.2 No. 214-17
• UL listed as CL3P per UL standard 13 or FPLP per UL standard 1424
• Cable meets NFPA 262 (Steiner tunnel) flame test
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (223) Updated January 17, 2022
• Operating Voltage: 300V RMS
• Made in the USA

Remember, all of our wire can feature:

  • Short minumum runs
  • Special jacket colors including stripes
  • Custom print legends
  • Custom cable constructions
  • Custom packaging - boxes or reels
  • Custom lengths
  • Your name on package labels
