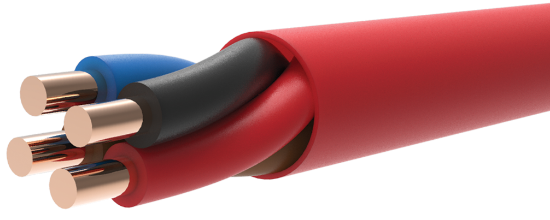

P184F

Conductor

AWG Size & Stranding:

18 AWG Solid

Material:

Bare Copper Wire

Conductor Count:

4

Insulation

Material:

Plenum Rated Polyvinylchloride

Wall Thickness:

.009"

Color Code:

Black, Red, Brown, Blue

Assembly

Nominal Lay Length:

3.00”

Shield:

N/A

Drain Wire:

N/A

Jacket

Material:

Plenum Rated Polyvinylchloride

Wall Thickness:

.015"

Diameter:

0.172”

Color:

Red

Ripcord:

Yes

Weight:

31 lbs per mft

Nominal Diameter:

0.170”

Markings

Type:

Permanent Inkjet Surface Print

Legend:

LAKE CABLE E171202 18AWG 4C 75C (UL) CL3P OR FPLP OR C(UL)US CMP FT-6 "ROHS COMPLIANT" MADE IN USA

Footage Markers:

Ascending/Descending

Standards

Maximum operating voltage:

300V

Operating Temperature Range:

-20C TO 75C

Approvals

Approvals List:

• Cable suitable for installation under NEC (NFPA 70) articles 800, 725 and 760 guidelines
• Cable suitable for installation in Canada under Section 60 of CEC, Part I
• C(UL)US listed as CMR per UL standard 444 and per CSA C22.2 No. 214-17
• UL listed as CL3R per UL standard 13 or FPLR per UL standard 1424
• Cable meets (UL) 1666 vertical shaft flame test
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (224) Updated June 10, 2022
• Operating Voltage: 300V RMS
• Made in the USA
• WARNING: This product may contain chemicals, such as Vinyl Chloride, known to the state of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Wash hands after handling.

• Cable suitable for installation under NEC (NFPA 70) articles 800, 725 and 760 guidelines
• Cable suitable for installation in Canada under Section 60 of CEC, Part I
• C(UL)US listed as CMP per UL standard 444 and per CSA C22.2 No. 214-17
• UL listed as CL3P per UL standard 13 or FPLP per UL standard 1424
• Cable meets NFPA 262 (Steiner tunnel) flame test
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (224) Updated June 10, 2022
• Made in the USA
• WARNING: This product may contain chemicals, such as Vinyl Chloride, known to the state of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Wash hands after handling.
