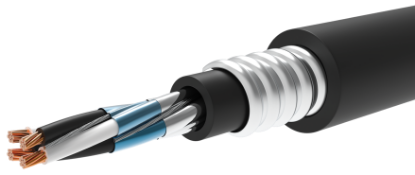

16 AWG 4 pairs 7 strand bare copper conductors, PVC insulation, individually and overall shielded, with a PVC jacket, aluminum interlocked armor and an overall PVC jacket. (UL) ITC or PLTC 105’C.
16 AWG 6 pairs 7 strand bare copper conductors, PVC insulation, individually and overall shielded, with a PVC jacket, aluminum interlocked armor and an overall PVC jacket. (UL) ITC or PLTC 105’C.
18 AWG 4 pairs 7 strand bare copper conductors, PVC insulation, individually and overall shielded, with a PVC jacket, aluminum interlocked armor and an overall PVC jacket. (UL) ITC or PLTC 105’C.
20 AWG 4 pairs 7 strand bare copper conductors, PVC insulation, individually and overall shielded, with a PVC jacket, aluminum interlocked armor and an overall PVC jacket. (UL) ITC or PLTC 105’C.
22 AWG 4 pairs 7 strand bare copper conductors, PVC insulation, individually and overall shielded, with a PVC jacket, aluminum interlocked armor and an overall PVC jacket. (UL) ITC or PLTC 105’C.
| Product | AWG Size & Stranding | Conductor Count | Jacket Thickness | Cable OD | Cable Weight |
|---|---|---|---|---|---|
| MCT162SPOS | 16 AWG 7 Strands Class B | 2 Pairs | - | - | - |
| MCT164SPOS | 16 AWG 7 Strands Class B | 4 Pairs | - | - | - |
| MCT166SPOS | 16 AWG 7 Strands Class B | 4 Pairs | - | - | - |
| MCT182SPOS | 18 AWG 7 Strands Class B | 2 Pairs | - | - | - |
| MCT184SPOS | 18 AWG 7 Strands Class B | 4 Pairs | - | - | - |
| MCT202SPOS | 20 AWG 7 Strands Class B | 2 Pairs | - | - | - |
| MCT204SPOS | 20 AWG 7 Strands Class B | 4 Pairs | - | - | - |
| MCT222SPOS | 22 AWG 7 Strands Class B | 2 Pairs | - | - | - |
| MCT224SPOS | 22 AWG 7 Strands Class B | 4 Pairs | - | - | - |
