24 AWG 1 shielded pair cable constructed with stranded tinned copper conductors with Foamed FEP insulation, aluminum/mylar shield with stranded tinned copper drain wire and an overall plenum rated PVC jacket for line level digital audio applications, manufactured in the USA and listed as CMP c(UL)us 75°C
24 AWG 2 conductor shielded cable constructed with stranded tinned copper cellular PE insulation, a heat fusible Aluminum/Mylar shield, a stranded tinned copper drain wire, and an overall PVC jacket. For AES/EBU digital audio applications, (UL) Type CL3R or CMR c(UL)us 75’C
| Product | AWG Size & Stranding | Conductor Count | Jacket Thickness | Cable OD | Cable Weight |
|---|---|---|---|---|---|
| AVP241D* | - | 2 Conductors | 0.015” | 0.153” | 14 Lbs/Mft |

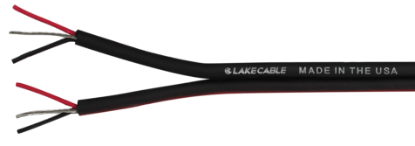

| AVB222AZ | 22 AWG 7 Strands Class B | 2 Pairs | 0.023” | 0.140” ± 0.005 x 0.292” ± 0.010” | 30 Lbs/Mft |
| AVB241D | - | - | 0.023” | 0.177” ± 0.008” | 16 Lbs./Mft |
| AVB241A | - | 2 Conductors | 0.020” | 0.123” | 12 Lbs/Mft |

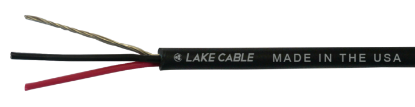

| AVB221A | - | 2 Conductors | 0.022” | 0.140” ± 0.005” | 15 Lbs/Mft |
