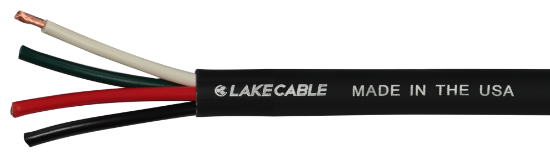

AVB134C52

Conductor

AWG & Stranding:

13 AWG 52 Strands

Material:

Annealed Bare Copper

Conductors Count:

4 conductors

Assembly

Cable Lay Length:

4.00” LHL (3 tw/ft)

Cable Binder:

Tissue wrap binder – 100% Coverage

Jacket

Material:

Pressure Flexible Polyvinylchloride

Wall Thickness:

0.050”

Diameter:

0.430” ± 0.010”

Color:

Black

Ripcord:

Not Required

Weight:

137 Lbs/Mft

Markings

Type:

Cable permanently identified via surface legend with silver ink

Legend:

LAKE CABLE AVB134C52 HIGH-FLEX PORTABLE SPEAKER CABLE 4C-13AWG MADE IN THE USA ROHS COMPLIANT

Footage Markers:

No

Dielectric

Material:

Polyvinylchloride

Diameter:

0.026”

Color:

Black, Red, White, & Green

Standards

Maximum operating voltage:

300V

Approvals

Approvals List:

• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA
