AVB2212ASC

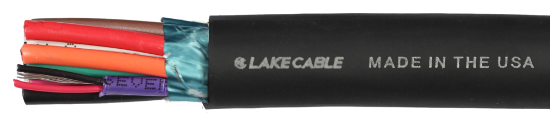

Twelve individually shielded and jacketed pairs cable with an overall TPE jacket. For microphone or line level balanced analog audio applications, listed CMR C(UL)US 75’C
SKU: AVB2212ASC


(12pr EPS & JKT) 22 AWG 7 strands TC PP Insulated
• Cable suitable for installations under NEC (NFPA 70) article 800 guidelines
• UL listed as type CMR c(UL)us 75°C per UL standard 444
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG & Stranding22 AWG 7 Strands Class B
MaterialAnnealed Tinned Copper
Conductor Count12 Pairs
Standards
Maximum operating voltage300V
Pairs Assembly
Pairs Lay Length1.50” LHL (8 tw/ft) Nominal
Pairs Drain Wire22 AWG 7 Strand Tinned Copper
Pairs ShieldHeat Fusible Aluminum/Mylar Tape 100% coverage (Foil Facing In)
Jacket
Material(Pressure Extruded) Flexible Thermoplastic Elastomer
Wall Thickness0.065”
Diameter0.705”
ColorBlack
RipcordNot Required
Weight278 Lbs/Mft
Overall Assembly
Cable Lay Length8.0 LHL (1.50 tw/ft) Nominal
Cable Drain16 AWG 19 Strand Tinned Copper (Under Aluminum/Mylar)
Cable ShieldAluminum/Mylar Tape - 100% coverage (Foil Facing In)
BinderTissue Wrap - 100% Coverage
Insulation
MaterialPolypropylene
Wall Thickness0.010”
Color Code(12pr) Black x Red
Pairs Jacket
Material(Pressured) Polyvinylchloride
Wall Thickness0.017”
Diameter0.137”
Color(s)Blue #6, White #9, Green #5, Red #2, Orange #3, Violet #7, Black #10, Pink #12, Tan #11, Gray #8, Yellow #4 & Brown #1 (Alphanumeric Characters Print)
RipcordNo
Markings
TypeCable permanently identified via surface print with Print Wheel
LegendLAKE CABLE AVB2212ASC 12 CHANNEL ANALOG AUDIO CABLE E171197 22 AWG CMR C(UL)US 75ºC MADE IN THE USA ROHS COMPLIANT FT-4
Footage MarkersYes
