AVB221A

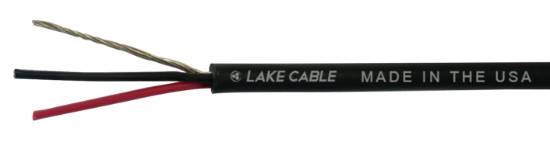

22 AWG 1 shielded pair cable constructed with stranded tinned copper conductors with PP insulation, aluminum/mylar shield with stranded tinned copper drain wire and an overall PVC jacket for line level analog audio applications, manufactured in the USA and (UL) listed CL3R or CMR c(UL)us 75°C
SKU: AVB221A


• Cable suitable for installations under NEC (NFPA 70) article 800 guidelines
• UL listed as type CMR c(UL)us 75°C per UL standard 444
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Nominal Electrical Characteristics
D.C. Resistance14.1 Ω/Mft @ 20ºC
Shield D.C. Resistance14.3 Ω/Mft @ 20ºC
Capacitance27.60 pF/ft Conductor to Conductor and 49.68 pF/ft Conductor to Shield
Impedance55 Ω
Conductor
AWG & Stranding22 AWG 7 Strand Class B
MaterialAnnealed Tinned Copper
Conductor Count2 Conductors
Insulation
MaterialPolypropylene
Wall Thickness0.008”
Color CodeBlack x Red
Assembly
Nominal Lay Length2.00” LHL (6 tw/ft)
Drain Wire22AWG 7 Strand Tinned Copper (Inside)
Pair ShieldHeat Fusible Aluminum/Mylar - 100% Coverage
Jacket
MaterialPressure Extruded Polyvinylchloride
Wall Thickness0.022”
Diameter0.140” ± 0.005”
ColorBlack
RipcordNo
Weight15 Lbs/Mft
Markings
TypeCable permanently identified via surface silver ink print
LegendLAKE CABLE AVB221A ANALOG SINGLE CHANNEL AUDIO CABLE E171197 22 AWG CMR C(UL)US 75ºC MADE IN THE USA ROHS COMPLIANT FT-4
Footage MarkersYes, on Opposite Side of Legend
Standards
Maximum operating voltage300V
