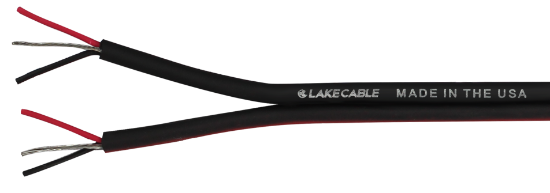

AVB222AZ

Conductor

AWG Size & Stranding:

22 AWG 7 Strands Class B

Material:

Annealed Tinned Copper

Conductor Count:

2 Pairs

Insulation

Material:

Polypropylene

Wall Thickness:

0.008”

Color Code:

(2) Black x Red

Assembly (Pairs)

Pairs Lay Length:

1.50” LHL (8.00 tw/ft), Nominal

Pairs Shield:

Heat Fusible Aluminum Mylar – 100% Coverage (Foil facing in)

Pairs Drain Wire:

22 AWG 7 Strand Tinned Copper (in Continuous Contact with Foil Shield)

Overall Assembly

Cable Lay Length:

Pulled in parallel at jacketing for a Zip-Cord Construction

Jacket

Material:

Integral Pressure Extruded Flexible Polyvinylchloride

Wall Thickness:

0.023”

Diameter:

0.140” ± 0.005 x 0.292” ± 0.010”

Color:

Black with Red Co-Extruded Stripe

Ripcord:

No

Weight:

30 Lbs/Mft

Markings

Type:

Cable permanently identified via surface inkjet print

Legend:

LAKE CABLE AVB222AZ ANALOG DUAL-CHANNEL AUDIO CABLE E171197 22AWG 2PR SHIELDED (UL) CMR C(UL)US OR (UL) CL3R 75’C MADE IN THE USA ROHS COMPLIANT FT-4

Footage Markers:

Yes

Standards

Maximum operating voltage:

300V

Approvals

Approvals List:

• Cable suitable for installations under NEC (NFPA 70) article 800 guidelines
• UL listed as type CMR c(UL)us 75°C per UL standard 444 and as type (UL) CL3R per UL Standard 13
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA
