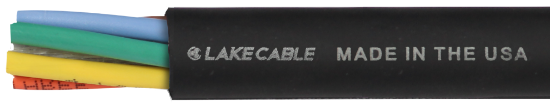

Six individually shielded and jacketed pairs cable with an overall aluminum/mylar shield, a stranded tinned copper drain wire and an overall TPE jacket. For microphone or line level balanced analog audio applications, listed CMR C(UL)US 75’C
SKU: AVB226ASC


(6PR EPS & JKT) 22 AWG 7 strands TC PP Insulated
• Cable suitable for installations under NEC (NFPA 70) article 800 guidelines
• UL listed as type CMR c(UL)us 75°C per UL standard 444
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Pairs Assembly
Pairs Lay Length1.50” LHL (8 tw/ft) Nominal
Pairs Drain Wire22 AWG 7 Strand Tinned Copper
Pairs ShieldHeat Fusible Aluminum/Mylar Tape 100% coverage (Foil Facing In)
Overall Assembly
Cable Lay Length5.50 LHL (2.18 tw/ft) Nominal
Cable Drain16 AWG 19 Strand Tinned Copper (Under Aluminum/Mylar)
Cable ShieldAluminum/Mylar Tape - 100% coverage (Foil Facing In)
BinderTissue Wrap - 100% Coverage
Pairs Jacket
Material(Pressured) Polyvinylchloride
Wall Thickness0.017
Diameter0.137”
Color(s)Brown #1, Red #2, Orange #3, Yellow #4, Green #5 & Blue #6 (Alphanumeric Characters Print)
RipcordNo
Conductor
AWG & Stranding22 AWG 7 Strands Class B
MaterialAnnealed Tinned Copper
Conductor Count6 Pairs
Insulation
MaterialPolypropylene
Wall Thickness0.010”
Color Code(6pr) Black x Red
Jacket
Material(Pressured) Matte Finish Thermoplastic Elastomer
Wall Thickness0.065”
Diameter0.553”
ColorBlack
RipcordNot Required
Weight169 Lbs/Mft
Markings
TypeCable permanently identified via surface print with Print Wheel
LegendLAKE CABLE AVB226ASC 6 CHANNEL ANALOG AUDIO CABLE E171197 22 AWG CMR C(UL)US 75ºC MADE IN THE USA ROHS COMPLIANT FT-4
Footage MarkersYes
Standards
Maximum operating voltage300V
