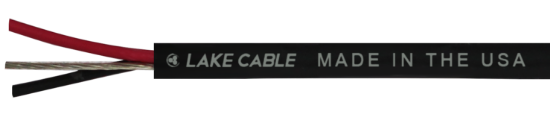

AVB241A

Conductor

AWG & Stranding:

24 AWG 7 Strand Class B

Material:

Annealed Tinned Copper

Conductor Count:

2 Conductors

Insulation

Material:

Polypropylene

Wall Thickness:

0.008”

Color Code:

Black x Red

Assembly

Nominal Lay Length:

1.50” LHL (8 tw/ft)

Drain Wire:

24 AWG 7 Strand Tinned Copper (Inside)

Pair Shield:

Heat Fusible Aluminum/Mylar - 100% Coverage

Jacket

Material:

Pressure Extruded Polyvinylchloride

Wall Thickness:

0.020”

Diameter:

0.123”

Color:

Black

Ripcord:

No

Weight:

12 Lbs/Mft

Markings

Type:

Cable permanently identified via surface silver ink print

Legend:

LAKE CABLE AVB241A ANALOG SINGLE CHANNEL AUDIO CABLE E171197 24 AWG CMR C(UL)US 75ºC MADE IN THE USA ROHS COMPLIANT FT-4

Footage Markers:

On Opposite Side of Legend

Nominal Electrical Characteristics

D.C. Resistance:

23.8 Ω/Mft @ 20ºC

Shield D.C. Resistance:

23.8 Ω/Mft @ 20ºC

Capacitance:

25.22 pF/ft Conductor to Conductor and 49.68 pF/ft Conductor to Shield

Impedance:

60 Ω

Standards

Maximum operating voltage:

300V

Approvals

Approvals List:

• Cable suitable for installations under NEC (NFPA 70) article 800 guidelines
• UL listed as type CMR c(UL)us 75°C per UL standard 444
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA
