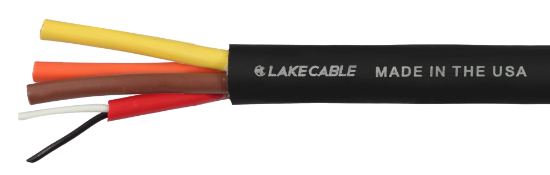

AVB264DSC

Conductor

AWG & Stranding:

26AWG 7 Strands Class B

Material:

Annealed Tinned Copper

Conductor Count:

4 Pairs

Insulation

Material:

Foamed Polypropylene

Wall Thickness:

0.018”

Color Code:

(4pr) Black x White

Pairs Assembly

Pairs Lay Length:

1.50” LHL (8 tw/ft) Nominal

Pairs Drain Wire:

26 AWG 7 Strand Tinned Copper

Pairs Shield:

Heat Fusible Aluminum/Mylar Tape

Overall Assembly

Cable Lay Length:

5.25 LHL (2.3 tw/ft) Nominal

Binder:

Tissue Wrap - 100% Coverage

Jacket

Material:

(Pressured) Thermoplastic Elastomer

Wall Thickness:

0.050”

Diameter:

0.445”

Color:

Black

Ripcord:

Not Required

Weight:

98 Lbs/Mft

Pairs Jacket

Material:

(Pressured) Polyvinylchloride

Wall Thickness:

0.023”

Diameter:

0.159”

Color(s):

Brown #1, Red #2, Orange #3, Yellow #4

Ripcord:

No

Markings

Type:

Cable permanently identified via surface print with Print Wheel

Legend:

LAKE CABLE AVB264DSC DIGITAL AES/EBU 4 CHANNEL AUDIO CABLE E171197 26 AWG CMR C(UL)US 75ºC MADE IN THE USA ROHS COMPLIANT FT-4

Footage Markers:

Yes

Nominal Electrical Characteristics

DC Resistance:

45.8 Ω/Mft @ 20ºC

Capacitance:

11.7 pF/ft (Conductor to Conductor)

Impedance:

110 Ω +/- 15

Standards

Recommended Operating Voltage:

300V

Approvals

Approvals List:

• UL listed as type CMR c(UL)us 75°C per UL standard 444
• Cable suitable for installations under NEC (NFPA 70) article 800 guidelines
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA
