AVB268DSC

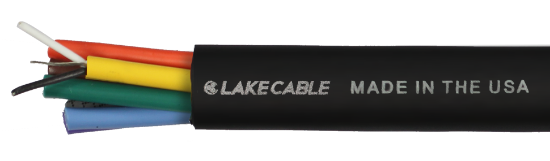

Eight individually shielded and jacketed pairs cable with and an overall TPE jacket. For AES/EBU digital audio applications, listed CMR C(UL)US 75’C
SKU: AVB268DSC


(8pr EPS & JKT) 26 AWG 7 strands TC Foam PP Insulated
• Made in the USA
• Cable suitable for installations under NEC (NFPA 70) article 800 guidelines
• UL listed as type CMR c(UL)us 75°C per UL standard 444
• All materials used in the manufacture of this cable are RoHS compliant

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG & Stranding26 AWG 7 Strands Class B
MaterialAnnealed Tinned Copper
Conductor Count8 Pairs
Standards
Recommended Operating Voltage300V
Pairs Assembly
Pairs Lay Length1.50” LHL (8 tw/ft) Nominal
Pairs Drain Wire26 AWG 7 Strand Tinned Copper
Pairs ShieldHeat Fusible Aluminum/Mylar Tape - 100% coverage (Foil Facing In)
Jacket
Material(Pressured) Thermoplastic Elastomer
Wall Thickness0.065”
Diameter0.596”
ColorBlack
RipcordNo
Weight165 Lbs/Mft
Overall Assembly
Cable Lay Length5.00 LHL (2.4 tw/ft) Nominal
FillersFibrillated Polypropylene – as Necessary for a Circular Cross-Section
BinderTissue Wrap - 100% Coverage
Insulation
MaterialFoamed Polypropylene
Wall Thickness0.015”
Color Code(8pr) Black x White
Nominal Electrical Characteristics
DC Resistance45.8 Ω/Mft @ 20ºC
Capacitance11.7 pF/ft (Conductor to Conductor)
Impedance110 Ω +/- 15
Pairs Jacket
Material(Pressured) Polyvinylchloride
Wall Thickness0.023”
Diameter0.141”
Color(s)Brown #1, Red #2, Orange #3, Yellow #4, Green #5, Blue #6, Purple #7 & Gray #8 (Alphanumeric #8 Characters Print)
RipcordNo
Markings
TypeCable permanently identified via surface print with Print Wheel
LegendLAKE CABLE AVB268DSC DIGITAL AES/EBU 8 CHANNEL AUDIO CABLE E171197 26 AWG CMR C(UL)US 75ºC MADE IN THE USA ROHS COMPLIANT FT-4
Footage MarkersYes
