B182CT16

18/2C 16XTC NS PVC CMG/AWM CHROME GRAY

SKU: B182CT16

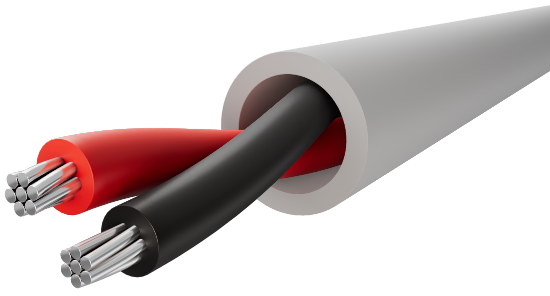

18 AWG 2C 16 STRAND TINNED COPPER WIRE WITH .013" PVC INSULATION, NON-SHIELDED, OVERALL .032" CHROME GRAY PVC JACKET.
75'C C(UL)US CMG SUN RES FT-4 OR AWM 2464 300'C 80'C VW-1 "ROHS COMPLIANT" MADE IN USA
CC: BLACK & RED
RIPCORD: YES
FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Conductor
AWG Size & Stranding	18 AWG 16 Strands
Material	Annealed Tinned Copper
Conductor Count	2 Conductors
Insulation
Material	Polyvinylchloride
Wall Thickness	.013"
Color Code	Black & Red
Assembly
Nominal Lay Length	2.00", 2.00"
Ground	No
Fillers	N/A
Binder	N/A
Shield	Unshielded
Drain Wire	No
Jacket
Material	Polyvinylchloride
Wall Thickness	0.032”
Diameter	0.208” ± 0.017”
Color	Chrome
Ripcord	Yes
Cold Bend Rating	N/A
Weight	24 Lbs/Mft
Markings
Type	Cable shall be permanently identified via surface inkjet print
Legend	LAKE CABLE E171197 18AWG 2C 75C C(UL)US CMG SUN RES FT4 OR AWM 2464 300V 80C VW-1 "ROHS COMPLIANT" MADE IN USA
Footage Markers	Yes, Ascending/Descending
Approvals
Approvals List	• Cable suitable for installation under NEC (NFPA 70) article 800 guidelines • Cable suitable for installation in Canada under Section 60 of CEC, Part I • C(UL)US listed as CMG per UL standard 444 and per CSA C22.2 No. 214 • Cable meets (UL) 1685 FT4 flame test • Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive • Cable is REACH compliant per Regulation (EC) No 1907/2006 (224) Updated June 10, 2022 • Made in the USA

Copper Price 04/30/2025 4.5070
