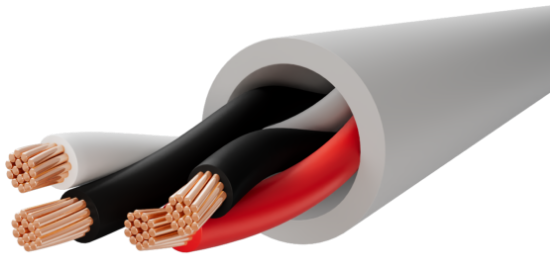

B182PRC

Conductor

AWG Size & Stranding:

18 AWG 16 Strands

Material:

Annealed Tinned Copper

Conductor Count:

2 Pair

Insulation

Material:

polyvinylchloride

Wall Thickness:

.014"

Color Code:

Black & Red, Black & White

Assembly

Ground:

No

Fillers:

N/A

Binder:

N/A

Shield:

Unshielded

Drain Wire:

N/A

Nominal Lay Length:

3.00"

Jacket

Material:

Polyvinylchloride

Wall Thickness:

0.035”

Diameter:

0.306” ± 0.025”

Color:

Chrome Gray

Ripcord:

Yes

Cold Bend Rating:

N/A

Weight:

46 Lbs/Mft

Markings

Type:

Cable permanently identified via surface inkjet print

Legend:

LAKE CABLE E171197 18AWG 2PR 75C C(UL)US CMG SUN RES FT4 OR AWM 2464 300V 80C “ROHS COMPLIANT” MADE IN USA

Footage Markers:

Yes, Ascending/Descending

Approvals

Approvals List:

• Cable suitable for installation under NEC (NFPA 70) article 800 guidelines
• Cable suitable for installation in Canada under Section 60 of CEC, Part I
• C(UL)US listed as CMG per UL standard 444 and per CSA C22.2 No. 214-17
• UL recognized component as AWM 2464, 80°C, 300V per UL standard 758
• For internal wiring or external interconnection of electronic equipment
• Cable meets (UL) 1685 FT4 flame test
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (224) Updated June 10, 2022
• Made in the USA
