B183PRC

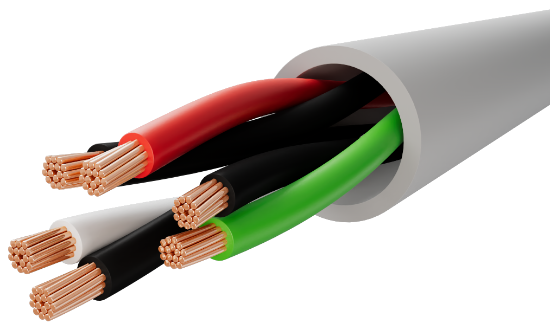

18 AWG 3 pairs 16 strand tinned copper wire with PVC insulation, unshielded, with an overall PVC jacket. C(UL)US CMG or AWM 2464
SKU: B183PRC


• Cable suitable for installation under NEC (NFPA 70) article 800 guidelines
• Cable suitable for installation in Canada under Section 60 of CEC, Part I
• C(UL)US listed as CMG per UL standard 444 and per CSA C22.2 No. 214-17
• UL recognized component as AWM 2464, 80°C, 300V per UL standard 758
• For internal wiring or external interconnection of electronic equipment
• Cable meets (UL) 1685 FT4 flame test
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (224) Updated June 10, 2022
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding18 AWG 16 Strands Class K
MaterialAnnealed Tinned Copper
Conductor Count3 Pairs
Insulation
MaterialPolyvinylchloride
Wall Thickness0.013”
Color CodeBlack x Red, Black x White, Black x Green
Assembly
GroundN/A
FillersN/A
BinderN/A
ShieldN/A
Drain WireN/A
Jacket
MaterialPolyvinylchloride
Wall Thickness0.032”
Diameter0.326” ± 0.026”
ColorChrome
RipcordYes
Cold Bend RatingN/A
Weight60 Lbs/Mft
Markings
TypeCable permanently identified via surface inkjet print
LegendLAKE CABLE E171197 18AWG 3PR 75C C(UL)US CMG SUN RES FT4 OR AWM 2464 300V 80C "ROHS COMPLIANT" MADE IN USA
Footage MarkersYes, Ascending/Descending

Remember, all of our wire can feature:

  • Short minumum runs
  • Special jacket colors including stripes
  • Custom print legends
  • Custom cable constructions
  • Custom packaging - boxes or reels
  • Custom lengths
  • Your name on package labels
