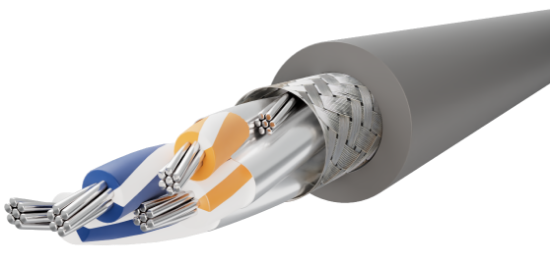

24/2PR 7STR TC OAS/BRD PE/PVC AWM
SKU: B242PRSTP-BRD


24 AWG 2 PAIR 7 STRAND TINNED COPPER WIRE WITH .014" FOAM PE INSULATION OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 24 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL 90% TINNED COPPER BRAID SHIELD, OVERALL .027" CHROME GRAY PVC JACKET.
(UL) CM C(UL)US 75'C OR AWM 2919 30V 80'C "ROHS"
CC: WHITE/BLUE & BLUE/WHITE, WHITE/ORANGE & ORANGE/WHITE
RIPCORD: YES
FOOTAGE MARKERS: YES
CAPACITANCE: 12.5 PF/FT
IMPEDANCE 123 OHMS
DC RESISTANCE: 25.7 OHMS/MFT @ 20'C

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding24 AWG 7 Strands Class B
MaterialAnnealed Tinned Copper
Conductor Count2 Pairs
Insulation
MaterialFoamed Polyethylene
Wall Thickness0.014"
Color CodeWhite/Blue x Blue/White, White/Orange x Orange/White
Assembly
GroundN/A
FillersN/A
BinderN/A
ShieldAluminum/Mylar Tape - 100% coverage (Foil Out)
Drain Wire24 AWG 7 Strand Tinned Copper
Jacket
MaterialPolyvinylchloride
Wall Thickness0.030”
Diameter0.254” ± 0.020”
ColorChrome Gray
RipcordYes
Cold Bend RatingN/A
Weight36 lbs/Mft
Markings
TypeCable permanently identified via surface inkjet print
LegendLAKE CABLE E171197 24AWG 2PR 75C C(UL)US CM OR AWM 2919 80C 30V “ROHS COMPLIANT” MADE IN USA
Footage MarkersYes
Approvals
Approvals List

• UL listed as Type CM c(UL)us per UL Standard or
• UL recognized component AWM Style 2919 per UL Standard 758
• For Internal Wiring or external interconnection of electronic equipment
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (219) Updated January 15, 2021
• Made in the USA
