BUS DROP

Found 8 products.

Sort by

Display per page

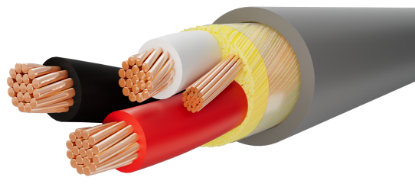

10 AWG 3C 19STR BC + (3) 14AWG 19STR UNINS GND NS VNTC (UL) BUS DROP 600V

12AWG 3C 19STR BC + (3) UNINS GNDS NS PVC/NYLON-PVC (UL) BUS DROP 600V 90C

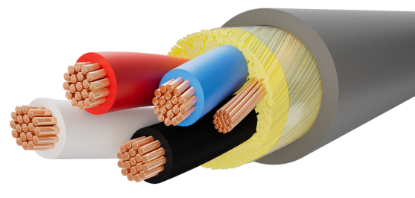

12 AWG 4C 19STR BC + (3) UNINS GND NS PVC/N-PVC (UL) BUS DROP 600V

14AWG 3C 19STR BC + (3) UNINS GND NS PVC/N-PVC (UL) BUS DROP 600V

2AWG 3C 19STR BC +(3) UNINS GND NS VNTC (UL) BUS DROP 600V

4AWG 3C 19STR BC + 12AWG 19STR 3 UNINS GND NS VNTC (UL) BUS DROP 600V

6AWG 3C 19STR BC + 14GA 19STR 3UNINS GND UNS VNTC (UL) BUS DROP 600V

8AWG 3C 19STR BC + (3) UNINS GND NS PVC-PVC (UL) BUS DROP 600V

Product	AWG Size & Stranding	Conductor Count	Jacket Thickness	Cable OD	Cable Weight
BD103(19)/3G/X18	10 AWG 19 Strand Class C	3	.045"	-	200 lbs./Mft
BD123(19)/3G/X18	12 AWG 19 Strand Class C	3	.045"	-	134 lbs./Mft
BD124(19)/3G/X18	12 AWG 19 Strand Class C	4	.045"	-	161 lbs./Mft
BD143(19)/3G/X18	14 AWG 19 Strand Class C	3	.045"	-	95 lbs./Mft
BD23(19)/3G/X18	2 AWG 19 Strand Class C	3	.080"	-	969 lbs./Mft
BD43(19)/3G/X18	4 AWG 19 Strand Class C	3	.080"	-	678lbs./Mft
BD63(19)/3G/X18	6 AWG 19 Strand Class C	3	.060"	-	419 lbs./Mft
BD83(19)/3G/X18	8 AWG 19 Strand Class C	3	.060"	-	324 lbs./Mft
