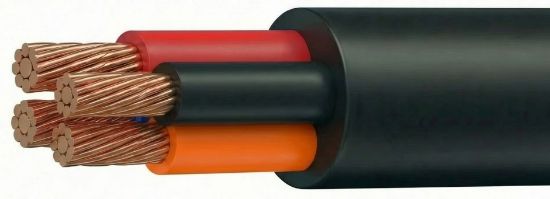

PPE24(665)

Conductor

Conductor Count:

4

AWG Size:

2 AWG

Number of Strands:

665

Stranding Class:

Class K

Material:

Annealed Bare Copper

Insulation

Material:

Thermoplastic Elastomer

Wall Thickness:

0.062

Color Code:

Orange

Assembly

Cable Binder:

Non-Woven Polyester Tape – 100% Coverage

Fillers:

Non-Hygroscopic Polypropylene – as required for a cross-sectional

Jacket

Material:

Thermoplastic Elastomer

Ripcord:

No

Color:

Black

Cold Bend Rating:

-40°C

Wall Thickness:

0.125

Diameter:

1.293

Weight:

1447

Min. Static Bend Radius:

3.87

Markings

Footage Markers:

Yes

Type:

Cable shall be permanently identified via surface inkjet print

Legend:

LAKE CABLE E362077 (2AWG) 4C (UL) PPE 2000V 90C DRY 75C WET SUN RES “ROHS COMPLIANT” MADE IN USA

Approvals

Approvals List:

• Listed as Type PPE per UL Standard 1650 for Portable Power Cables

• Refer to NEC (NFPA 70) article 400 for installation guidelines

• Suitable for Sunlight Resistant applications

• Due to the frequent updates to regulations, EU REACH SVHCs and ROHS please contact Lake Cable for the most up to date compliance statement.

•WARNING: This product may contain chemicals that pose a risk of cancer from exposure to Vinyl Chloride and reproductive harm from exposure to Di-isodecyl Phthalate (DIDP). Visit: www.P65Warnings.ca.gov
